FIGHTING SHIPS OF THE WORLD
MALAYSIA
COASTAL FORCES
PERKASA fast attack craft (torpedo) (1967)





Gempita 1972

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Perkasa P150   Vosper, Portsmouth, UK   26.10.1965 mid-1967 stricken 1977
Handalan P151   Vosper, Portsmouth, UK   18.1.1966 mid-1967 stricken 1977
Gempita P152   Vosper, Portsmouth, UK   6.4.1966 mid-1967 stricken 1977
Pendekar P153   Vosper, Portsmouth, UK   24.6.1966 mid-1967 stricken 1977


Technical data


Displacement standard, t

95 normal

Displacement full, t

114

Length, m

27.4 wl 30.4 oa

Breadth, m

7.30

Draught, m

2.10 max

No of shafts

3

Machinery

3 Rolls-Royce Proteus gas turbines / 2 General Motors diesels

Power, h. p.

12750 / 380

Max speed, kts

54 / 10

Fuel, t

diesel oil 24

Endurance, nm(kts)
Armament

1 x 1 - 40/60 Mk 9, 1 x 1 - 20/70 Mk 7, 4 - 533 TC or 10 mines

Electronic equipmentDecca nav. radar
Complement

24



Standard scale images


<i>Perkasa</i> 1970
Perkasa 1970


Graphics

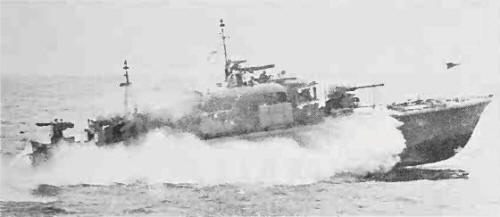

<i>Gempita </i>1972
Gempita 1972


Project history

Four modified versions of the RN 'Brave' class were ordered in October 1964 and shipped out from England in 1967. P150 achieved 57kts on trials. Generally similar to the RN craft but the hull was made of bonded wood, as in the private-venture boat Ferocity. Air conditioned quarters. Another improvement was the provision of cruising diesels on the wing shafts to improve endurance.

Modernizations

1971, all: - 4 - 533 TC; + 2 x 4 SS-12 SSM (8 SS-12)

Naval service

No significant events.
