SOUR small landing ships (1985)
Damour 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| سور [Sour] | 21 | SFCN, Villeneuve-la-Garenne, France | 1984 | 1.1985 | in service (2019) | ||
| ضمور [Damour] | 22 | SFCN, Villeneuve-la-Garenne, France | 11.12.1984 | 28.3.1985 | in service (2019) |
Technical data
| Displacement standard, t | 250 |
|---|---|
| Displacement full, t | 670 |
| Length, m | 57.0 pp 59.0 oa |
| Breadth, m | 12.0 |
| Draught, m | 1.30 mean 1.62 full load |
| No of shafts | 2 |
| Machinery | 2 SACM-Wärtsilä UD30V12 diesels |
| Power, h. p. | 1020 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(8) |
| Armament | 2 x 1 - 20/70 Mk 4, 1 x 1 - 81/12 mortar |
| Military load | 5 LVTs or 11 trucks |
| Electronic equipment | Decca radar |
| Complement | 19 |
Graphics

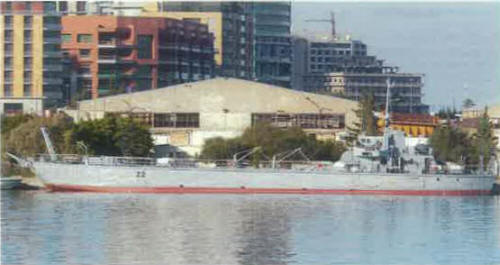

Damour 2008
Project history
French EDIC-III class LCUs.
Modernizations
None.
Naval service
No significant events.
