NAVYPEDIA


Jounieh 2006

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
لبنان [Lebanon] أرز [Arz] 301 عمشيت [Amchit] (ex-Attacker) 302 جونيه [Jounieh] (ex-Fencer) 303 باترون [Batroun] (ex-Safeguard) 304 جبيل [Jbeil] (ex-Chaser) 305 بيروت [Beirut] (ex-Hunter) 306 سعيدة [Saida] (ex-Striker) 307 صرفند [Sarafand] (ex-Swift)	Fairey Allday Marine, Hamble, UK: Lebanon, Arz, 301-307	1980: Lebanon, Arz 1983 // 1992: 301, 302, 304-306 1978 // 1994: 303, 307	none	none	2014-16: Lebanon, Arz in service (2019): 301-307

Technical data

Displacement standard, t	31
Displacement full, t	35
Length, m	19.3 pp 20.0 oa
Breadth, m	5.18
Draught, m	1.45
No of shafts	2
Machinery	2 General Motors 12V71TI diesels
Power, h. p.	1300
Max speed, kts	24
Fuel, t	diesel oil
Endurance, nm(kts)	650(20)
Armament	3 x 1 - 12.7/90
Electronic equipment	Lebanon, Arz, 301, 302, 304-306: Decca 1216 radar 303, 307: Decca 2690 radar
Complement	11

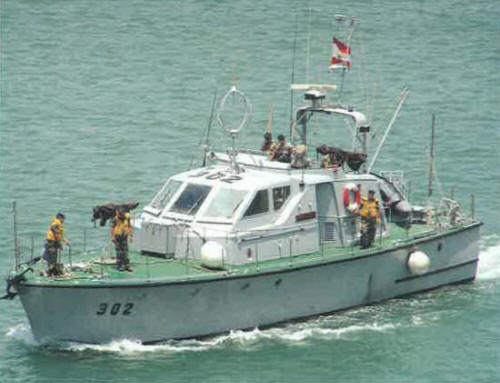

Graphics

Project history

Tracker Mk II class. First two boats were built directly for Lebanon and served mainly in Customs service, other boats were purchased from Royal Navy in 1992 and from British Customs service in 1994.

Modernizations

1990s, many: - 1 x 1 - 12.7/90; + 1 x 2 - 23/82 ZU-23-2

Naval service

No significant events.
