Aman 1992

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
إنتصار [Intisar]	P301		Transfield ASI, Jervis Bay, Australia			20.1.1993	in service (2020)

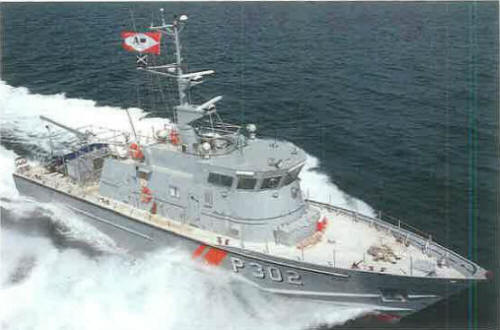

أمان [Aman]	P302		Transfield ASI, Jervis Bay, Australia			20.1.1993	in service (2020)
ميمون [Maymoon]	P303		Transfield ASI, Jervis Bay, Australia			28.7.1993	in service (2020)
مبارك [Mubarak]	P304		Transfield ASI, Jervis Bay, Australia			28.7.1993	in service (2020)

Technical data

Displacement standard, t	148
Displacement full, t	165
Length, m	27.1 pp 31.5 oa
Breadth, m	6.50
Draught, m	2.00
No of shafts	2 + 1 waterjet
Machinery	2 MTU 16V396 TB94 diesels + 1 MTU 8V183 TE62 diesel
Power, h. p.	5800 + 750 = 6550
Max speed, kts	28
Fuel, t	diesel oil
Endurance, nm(kts)	2500(12)
Armament	1 x 1 - 12.7/90, 2 x 1 - 7.6/90
Electronic equipment	2x Decca radars
Complement	11

Standard scale images

Graphics

Project history

ASI310 design, ordered in 1990. Carry a 5m RIB.

Modernizations

None.

Naval service

Mubarak was damaged by collision with Iraqi merchant vessel in December 2010.
