IB1501 patrol launches (1993)

HOME

FIGHTING SHIPS OF THE WORLD

KUWAIT

COAST GUARD


IB1501 1996

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
IB1501 IB1503 IB1505 IB1507 IB1509 IB1511 IB1513 IB1515 IB1517 IB1519 IB1521 IB1523	Simonneau Marine, Fontenay-le-Comte, France: IB1501, 1503, 1505, 1507, 1509, 1511, 1513, 1515, 1517, 1519, 1521, 1523	1993-1994: IB1501, 1503, 1505, 1507, 1509, 1511, 1513, 1515, 1517, 1519, 1521, 1523	none	none	2011-2013: IB1501, 1503, 1505, 1507, 1509, 1511, 1513, 1515, 1517, 1519, 1521, 1523

Names

Builders

Commissioned

Losses

Transfers

Discarding

IB1501

IB1503

IB1505

IB1507

IB1509

IB1511

IB1513

IB1515

IB1517

IB1519

IB1521

IB1523

Simonneau Marine, Fontenay-le-Comte, France: IB1501, 1503, 1505, 1507, 1509, 1511, 1513, 1515, 1517, 1519, 1521, 1523

1993-1994: IB1501, 1503, 1505, 1507, 1509, 1511, 1513, 1515, 1517, 1519, 1521, 1523

none

2011-2013: IB1501, 1503, 1505, 1507, 1509, 1511, 1513, 1515, 1517, 1519, 1521, 1523

Technical data

Displacement standard, t
Displacement full, t	10
Length, m	14.0
Breadth, m	3.80
Draught, m	0.62
No of shafts	2
Machinery	2 Caterpillar 3208 diesels
Power, h. p.	850
Max speed, kts	40
Fuel, t	diesel oil
Endurance, nm(kts)	180(35)
Armament	3 x 1 - 12.7/90
Electronic equipment	Furuno radar
Complement	4

Graphics

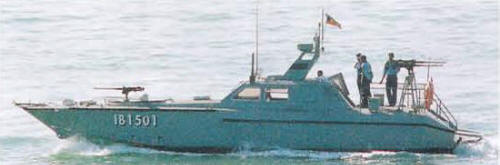

IB1501 1996

Project history

Star Naja (Manta) design, ordered in 1992.

Modernizations

None.

Naval service

No significant events.
