GANGGYEONG minehunters (1986-1994)

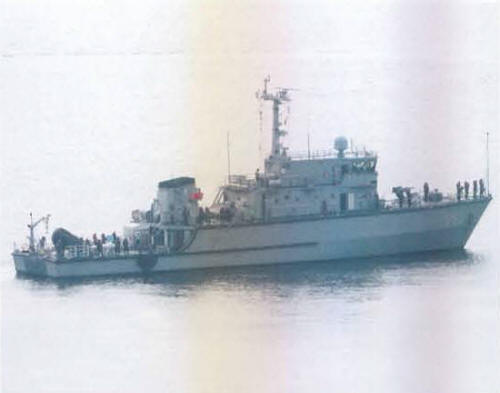

Ganggyeong 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 강경 [Ganggyeong] | 561 | Kangnam Swallow Craft | 30.8.1986 | 19.12.1986 | in service (2019) | ||
| 강진 [Gangjin] | 562 | Kangnam Swallow Craft | 27.10.1990 | 31.5.1991 | in service (2019) | ||
| 고령 [Goryeong] | 563 | Kangnam Swallow Craft | 14.1.1991 | 30.11.1991 | in service (2019) | ||
| 김포 [Gimpo] | 565 | Kangnam Swallow Craft | 29.9.1992 | 30.4.1993 | in service (2019) | ||
| 고창 [Gochang] | 566 | Kangnam Swallow Craft | 30.3.1993 | 29.10.1993 | in service (2019) | ||
| 김화 [Kumhwa] | 567 | Kangnam Swallow Craft | 1.8.1993 | 1.5.1994 | in service (2019) |
Technical data
| Displacement standard, t | 470 |
|---|---|
| Displacement full, t | 520 |
| Length, m | 50.0 |
| Breadth, m | 9.60 oa 8.31 wl |
| Draught, m | 2.60 |
| No of shafts | 2 Voith-Schneider |
| Machinery | 2 MTU diesels |
| Power, h. p. | 1800 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(12) |
| Armament | 1 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90, 2x Pluto USV |
| Electronic equipment | SPS-64(v) radar, type 193M, type 2048 sonars |
| Complement | 48 (inc. 4 divers) |
Standard scale images
Ganggyeong 2000
Graphics
Ganggyeong 2008
Project history
Design based on the Italian Lerici class. GRP hull.
Modernizations
None.
Naval service
No significant events.
