FIGHTING SHIPS OF THE WORLD
KOREA (NORTH)
COASTAL FORCES

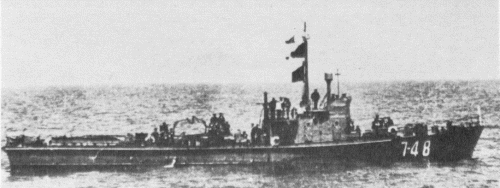

'K48' large patrol craft (late 1950s)







Ships


Name No Yard No Builder Laid down Launched Comp Fate
(i)     North Korea     late 1950s discarded late 1980s
(ii)     North Korea     late 1950s discarded late 1980s
(iii)     North Korea     late 1950s discarded early 1990s
(iv)     North Korea     late 1950s discarded early 1990s


Technical data


Displacement standard, t
Displacement full, t

110

Length, m

38.1

Breadth, m

5.50

Draught, m

1.50

No of shafts

2

Machinery

2 diesels

Power, h. p.

4000 - 5000

Max speed, kts

24

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 76/55 34K, 3 x 1 - 37/63 70K, (2 - 3) x 2 - 14.5/93

Electronic equipment

Reya radar

Complement


Standard scale images


1970
1970


Graphics





Project history

Korean design.

Modernizations

none

Naval service

No significant events.
