MADARAKA patrol craft (1975)

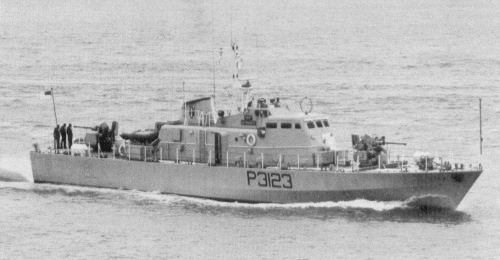

Harambee 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Madaraka P3121   Brooke Marine, Lowestoft, UK   28.1.1975 16.6.1975 retired 2000
Jamhuri P3122   Brooke Marine, Lowestoft, UK   14.3.1975 16.6.1975 retired 1996
Harambee P3123   Brooke Marine, Lowestoft, UK   2.5.1975 28.8.1975 retired 1996


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Madaraka P3121   Brooke Marine, Lowestoft, UK   28.1.1975 16.6.1975 retired 2000 Jamhuri P3122   Brooke Marine, Lowestoft, UK   14.3.1975 16.6.1975 retired 1996 Harambee P3123   Brooke Marine, Lowestoft, UK   2.5.1975 28.8.1975 retired 1996

Technical data


Displacement standard, t

120
Displacement full, t

145
Length, m

32.6
Breadth, m

6.10
Draught, m

1.70
No of shafts

2
Machinery

2 Paxman Valenta 16CM diesels
Power, h. p.

5400
Max speed, kts

25.5
Fuel, t

diesel oil
Endurance, nm(kts)

2300(12)
Armament

2 x 1 - 40/60 Mk 7
Electronic equipment

Decca RM-916 radar
Complement

21


Graphics


<i>Harambee </i>1976
Harambee 1976


Project history

Brooke Marine 32m design.

Modernizations

1982, Madaraka, Harambee; 1983, Jamhuri: - 2 x 1 - 40/60, Decca RM-916 radar; + 4 x 1 Gabriel II SSM (4 Gabriel II), 1 x 2 - 30/90 GCM-A02, Decca AC1226, RTN-10X radars

Naval service

No significant events.
