Archangel patrol launch (2006)
2006
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
1 unit |
SAFE Boats, Port Orchard, USA: 1 unit |
2006: 1 unit |
none |
none |
in service (2020): 1 unit |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 13 |
| Length, m | 12.8 |
| Breadth, m | 4.00 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar C9 diesels |
| Power, h. p. | 550 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(25) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 4 |

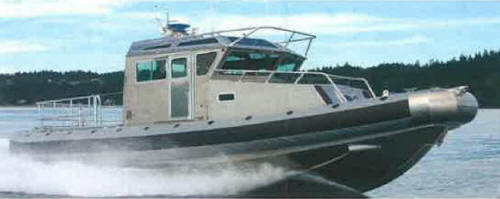

Graphics
2006
Project history
'Archangel' type. Aluminium construction. Donated by US government.
Modernizations
None.
Naval service
No significant events.
