5-GO 3 class torpedo boats (1892 - 1894)


8-go

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
第5水雷艇 - 第14水雷艇 [5-go - 14-go] 第16水雷艇 - 第19水雷艇 [16-go - 19-go]	Schneider-Creusot, Chalon-sur-Saône, France // Onohama K K: 5-go - 14-go, 16-go - 19-go	1892: 5-go - 10-go 1893: 14-go, 16-go 1894: 11-go - 13-go, 17-go - 19-go	16-go (11.5.1895)	none	1907: 5-go - 7-go 1908: 8-go, 9-go, 14-go 1910: 10-go - 13-go, 17-go - 19-go

Names

Builders

Commissioned

Losses

Transfers

Discarding

第5水雷艇 - 第14水雷艇 [5-go - 14-go]

第16水雷艇 - 第19水雷艇 [16-go - 19-go]

Schneider-Creusot, Chalon-sur-Saône, France // Onohama K K: 5-go - 14-go, 16-go - 19-go

1892: 5-go - 10-go

1893: 14-go, 16-go

1894: 11-go - 13-go, 17-go - 19-go

16-go (11.5.1895)

none

1907: 5-go - 7-go

1908: 8-go, 9-go, 14-go

1910: 10-go - 13-go, 17-go - 19-go

Technical data

Displacement normal, t	54
Displacement full, t
Length, m	33.8 pp 35.0 oa
Breadth, m	3.36
Draught, m	0.92
No of shafts	1
Machinery	1 HC, 1 locomotive boiler
Power, h. p.	525
Max speed, kts	20
Fuel, t	coal 8
Endurance, nm(kts)	1030(10)
Armament	1 x 1 - 47/30 21/2pdr Hotchkiss Mk I, 1 - 350 TT (bow), 1 x 1 - 350 TT
Complement	16

Graphics

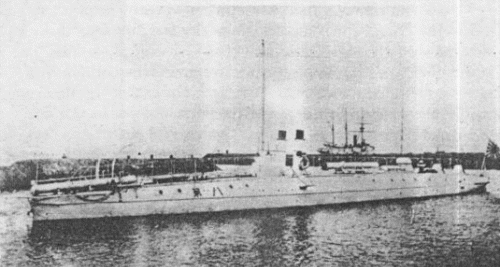

8-go

Project history

Ordered on 1885 Programme. Designed by E. Bertin on the basis of French torpedo boat No 75. Sets were produced in the France and assembled at Onohama.

Modernizations

None.

Naval service

No significant events.
