OYASHIO submarine (1960)

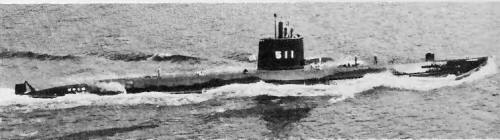

Oyashio 1972

Ships


Name No Yard No Builder Laid down Launched Comp Fate
おやしお [Oyashio] SS511   Kawasaki, Kobe 25.12.1957 25.5.1959 30.6.1960 discarded 9.1976


Technical data


Displacement standard, t
Displacement normal, t

1139 / 1420

Length, m

78.8

Breadth, m

7.00

Draught, m

4.66 max

No of shafts

2

Machinery

2 Kawasaki/MAN V8V22/30MMAL diesel-generators, 2 Toshiba electric motors

Power, h. p.

2700 / 5960

Max speed, kts

13 / 19

Fuel, t

diesel oil

Endurance, nm(kts)10000(10) /
Armament

4 - 533 TT (bow, 12?)

Electronic equipment

SS-2 radar, JQS-1, JQO-1 sonars, BLR-1 ECM suite

Complement

65

Diving depth operational, m

150



Standard scale images


<i>Oyashio </i>1965
Oyashio 1965


Graphics


<i>Oyashio </i>1972
Oyashio 1972


Project history

Double-hulled Oyashio was built under the 1956 programme and was the first submarine built in Japan since the Second World War. Although equipped with a snorkel, she was a very conservative design. She had a whale-shaped hull with an internal frame and her 480 main storage batteries were arranged in four groups within two rooms. The diving planes were housed inside the hull, between the internal and external frames.

Modernizations

None.

Naval service

No significant events.
