JAPAN MARITIME SELF-DEFENCE FORCE (JAPAN)

SUBMARINES

HARUSHIO submarines (1990 - 1997)

Fuyushio 2000

Name No Yard No Builder Laid down Launched Comp Fate
はるしお <Harushio> SS583   Mitsubishi, Kobe 21/4/1987 26/7/1989 30/11/1990 discarded 3/2009
なつしお <Natsushio> SS584   Kawasaki, Kobe 8/4/1988 20/3/1990 20/3/1991 discarded 3/2010
はやしお <Hayashio> SS585, 3/2008- TSS3606   Mitsubishi, Kobe 9/12/1988 17/1/1991 25/3/1992 TS 3/2008, discarded 3/2011
あらしお <Arashio> SS586   Kawasaki, Kobe 8/1/1990 17/3/1992 17/3/1993 discarded 3/2012
わかしお <Wakashio> SS587   Mitsubishi, Kobe 12/12/1990 22/1/1993 1/3/1994 discarded 3/2013
ふゆしお <Fuyushio> SS588, 3/2011- TSS3607   Kawasaki, Kobe 12/12/1991 16/2/1994 7/3/1995 TS 3/2011, discarded 3/2015
あさしお <Asashio> SS589, 3/2000- TSS3601   Mitsubishi, Kobe 24/12/1992 12/7/1995 12/3/1997 TS 3/2000, test ship 4/2002, discarded 2/2017



Displacement standard, t

583-588: 2450

589: 2560

Displacement normal, t

583-588:  / 2750

589: 2850

Length, m

77.4

Breadth, m

10.5

Draught, m

7.70

No of shafts

1

Machinery

2 Kawasaki-MAN 12V25/25S diesel-generators, 2 Toshiba Electric electric motors

Power, h. p.

3400 / 7220

Max speed, kts

12 / 20

Fuel, t

diesel oil 300

Endurance, nm (kts)

5500(12) /

Armament

6 - 533 HU-603B TT (bow, 20, inc/ Sub-Harpoon SSM (4 UGM-84))

Sensors

583-585: ZPS-6 radar, ZQQ-5, ZQR-1 sonars, ZLA-7 ECM suite, ZYQ-2B CCS

586-589: ZPS-6 radar, ZQQ-5B, ZQR-1 sonars, ZLA-7 ECM suite, ZYQ-2B CCS

Complement

75

Diving depth operational, m

350

Ship project history: A natural progression from the previous Yushio class with improved noise reduction and ZQR-1 towed array sonar. Can fire Sub-Harpoon from the torpedo tubes.

Modernizations: 2000, Asashio; 2008, Hayashio; 2011, Fuyushio: as TS carried only 4 torpedoes, ZQR-1 sonar array was removed, 60 crewmembers + 20 trainees.

12/2001, Asashio: lengthened (87.0m oa, 2900/3700t), AIP with 2 88kW Stirling V4-275R Mk II engines was installed

Naval service: No significant events.

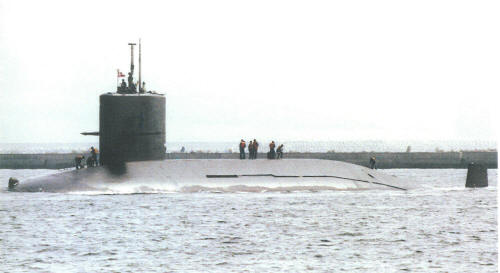

Arashio 2003
