IMPERIAL JAPANESE NAVY (JAPAN)

SUBMARINES

"Hei-gata C3" attack submarines (1943-1944)

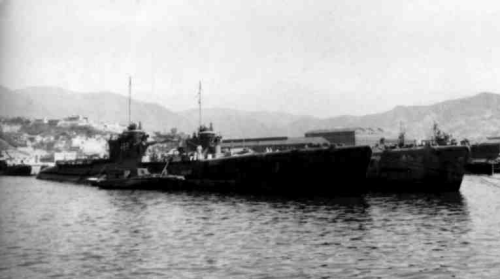

I53 1944

Name No Yard No Builder Laid down Launched Comp Fate
52 <I52>     Kure K K 3/1942 10/11/1942 12/1943 sunk 24/6/1944
53 <I53>     Kure K K 1/1943 1943 2/1944 surrendered 8/1945, scuttled 1/4/1946
55 <I55>     Kure K K 1/1943 1943 4/1944 sunk 28/7/1944



Displacement standard, t

2095

Displacement normal, t

2564 / 3644

Length, m

102.4 pp 106.9 wl 108.7 oa

Breadth, m

9.30

Draught, m

5.12

No of shafts

2

Machinery

2 Kampon diesels / 2 electric motors

Power, h. p.

4700 / 1200

Max speed, kts

17.7 / 6.5

Fuel, t

diesel oil 320

Endurance, nm(kts) 21000(16) / 105(3)
Armament

2 x 1 - 140/40 11-shiki, 1 x 2 - 25/60 96-shiki, 6 - 533 TT (bow,19)

Sensors 2-shiki 2-go radar (presumably on all), 93-shiki sonar, 93-shiki hydrophone, E27 ECM suite

Complement

94

Diving depth operational, m

100

Ship project history: Hei-Gata C3 type. Built under the 1941 War programme, repeated Hei-Gata C2 type, differing by decreased engine power: that allowed to raise an endurance significantly. Besides, these submarines had second 140mm guns and only 6 TTs. War programme provided building of two more subamrines (I57 and I59), but in 1943 this order was cancelled. 15 more boats (Nos5141-5155) of the same type were provided by the additional programme of 1942, but works have not been begun. Also 25 submarines of enhanced C4 type (Nos5156-5180, 2756t surfaced, 20.4kts surfaced, 1x1-140/40, 1x2-25, 8-533TT), planned under modified 5th Supplementary programme, were never ordered and cancelled in 1943.

Modernizations: late 1944, I53: - 1 x 1 - 140/40, torpedoes stowage was decreased; + 4 Kaiten human torpedoes.

3/1945, I53: - 1 x 1 - 140/40; + 2 Kaiten human torpedoes, 3-shiki 1-go radar

Naval service: I52 was sunk 24/6/1944 in Atlantic by US carrier aircraft. I55 was sunk 28/7/1944 E off Tinian by US escort destroyers Reynolds and Wyman. I53 30/3/1945 was damaged by a mine and 1/4/1946 scuttled by Americans.

I53
