IMPERIAL JAPANESE NAVY (JAPAN)

SUBMARINES

"Hei-gata C1" attack submarines (1940-1941)

I16 1941

I16 1943

Name No Yard No Builder Laid down Launched Comp Fate
16 <I16>     Mitsubishi, Kobe 9/1937 28/7/1938 3/1940 sunk 19/5/1944
18 <I18>     Sasebo K K 8/1937 12/11/1938 1/1941 sunk 11/2/1943
20 <I20>     Mitsubishi, Kobe 11/1937 25/1/1939 9/1940 sunk 3/9/1943
22 <I22>     Kawasaki, Kobe 11/1937 23/12/1938 3/1941 sunk 5/10/1942 or 12/11/1942
24 <I24>     Sasebo K K 12/1938 12/11/1939 10/1941 sunk 11/6/1943



Displacement standard, t

2184

Displacement normal, t

2554 / 3561

Length, m

103.8 pp 107.0 wl 109.3 oa

Breadth, m

9.10

Draught, m

5.35

No of shafts

2

Machinery

2 Kampon diesels / 2 electric motors

Power, h. p.

12400 / 2000

Max speed, kts

23.6 / 8

Fuel, t

diesel oil 245

Endurance, nm(kts) 14000(16) / 60(3)
Armament

1 x 1 - 140/40 11-shiki, 1 x 2 - 25/60 96-shiki, 8 - 533 TT (bow, 20), 1 A-gata midget submarine

Sensors 93-shiki sonar, 93-shiki hydrophone

Complement

95

Diving depth operational, m

100

Ship project history: Hei-Gata C1 type. Built under 3rd Supplementary programme of 1937. Attack submarines, intended specially for attacks of enemy combat ships. They were designated as "model C" (Hei-Gata) and were created on the basis of Kaidai 6b type fleet submarine, were very similar to B type submarines, differing, first of all, by armament: number of TTs has increased from 6 to 8, and torpedo stowage was increased to 19-20, TTs took places on four in two separated compartments, arranged one over another. At the expense of abandoning from aviation the gun was transferred to a bow, and deck in an aft part was strengthened for possibility to carry "A" type midget submarine. Double-hulled, endurance was about 90 days.

Modernizations: early 1943, I16: was converted to transport submarine; - 1 x 1 - 140/40, torpedoes stowage was decreased; + 1 14m Daihatsu-type landing craft, deck cargo

1943-44, some survived: + 2-shiki 2-go radar

Naval service: I22 was lost after 5/10/1942 off Malaita (Solomons), under miscellaneous versions, she was sunk 5/10/1942 by US aircraft or 12/11/1942 by US MTB 122 SW off New Guinea. I18 was sunk 11/2/1943 in Solomons area by seaplane from US cruiser Helena and destroyer Fletcher. I24 was sunk 10/6/1943 NE off Attu by ramming of US patrol craft 487. I20 after 30/8/1943 was lost, presumably sunk 3/9/1943 NW off Espirito Santo by US destroyer Ellett. I16 was sunk 19/5/1944 in Solomons area by US escort destroyer England.

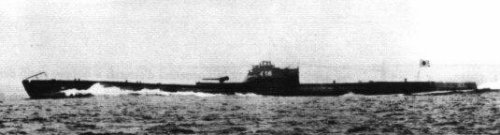

I16
