AWAJI ocean minesweepers (2017-)

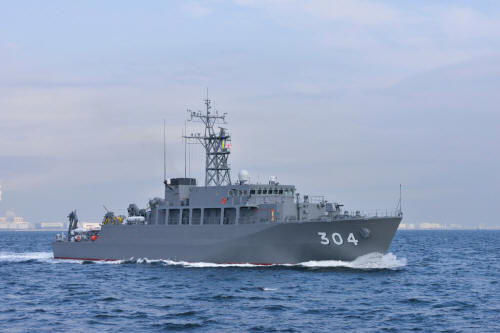

Awaji 2017

Ships


Name No Yard No Builder Laid down Launched Comp Fate
あわじ [Awaji] MSO304   Japan Marine United, Tsurumi 27.2.2014 27.10.2015 16.3.2017 in service (2019)
ひらど [Hirado] MSO305   Japan Marine United, Tsurumi 10.4.2015 10.2.2017 16.3.2018 in service (2019)
  MSO306   Japan Marine United, Tsurumi 2018 2020 2021 building (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate あわじ [Awaji] MSO304   Japan Marine United, Tsurumi 27.2.2014 27.10.2015 16.3.2017 in service (2019) ひらど [Hirado] MSO305   Japan Marine United, Tsurumi 10.4.2015 10.2.2017 16.3.2018 in service (2019)   MSO306   Japan Marine United, Tsurumi 2018 20202021building (2019)

Technical data


Displacement standard, t

690

Displacement full, t780
Length, m

66.8

Breadth, m

11.0

Draught, m

2.70

No of shafts

2

Machinery

2 diesels

Power, h. p.

2200

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 3 - 20/76 Sea Vulcan JM-61-B, EMD USV, 1-shiki mechanical minesweeping gear

Electronic equipment

OPS-39Y radar, ZQS-4 sonar, OZZ-2 TV-system.

Complement

54



Graphics


<i>Awaji </i>2017
Awaji 2017


Project history

GRP hull. Replacement for Yayeama class with new minehunting system.

Modernizations

None.

Naval service

No significant events.
