YURA small landing ships (1981)

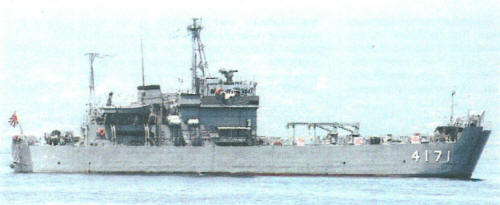

Yura 2002

Ships


Name No Yard No Builder Laid down Launched Comp Fate
ゆら [Yura] LSU4171   Sasebo HI 23.4.1980 15.10.1980 27.3.1981 stricken 4.2013
のと [Noto] LSU4172   Sasebo HI 23.4.1980 12.11.1980 27.3.1981 stricken 4.2012


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate ゆら [Yura] LSU4171   Sasebo HI 23.4.1980 15.10.1980 27.3.1981 stricken 4.2013 のと [Noto] LSU4172   Sasebo HI 23.4.1980 12.11.1980 27.3.1981 stricken 4.2012

Technical data


Displacement standard, t

500
Displacement full, t

590
Length, m

58.0
Breadth, m

9.50
Draught, m

1.70 aft
No of shafts

2
Machinery

2 Fuji 6L 27.5X diesels
Power, h. p.

3000
Max speed, kts

12
Fuel, t

diesel oil
Endurance, nm(kts)
Armament

1 x 3 - 20/76 JM61-MB Sea Vulcan
Military load

70 troops, cargo
Electronic equipmentOPS-9B radar
Complement32


Standard scale images


<i>Yura</i> 2000
Yura 2000


Graphics


<i>Yura </i>2002
Yura 2002


Project history

Small LSTs with a bow door and ramp.

Modernizations

None.

Naval service

No significant events.
