YF2121 landing craft (1989-1997)

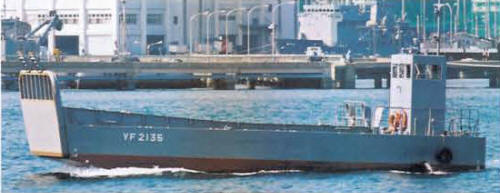

YF2135 2007
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
YF2121 YF2124, 2125 YF2127-2129 YF2132 YF2135 YF2138 YF2141 |
Ishihara, Takasago: YF2121, 2124, 2125, 2127-2129, 2132, 2135, 2138, 2141 |
1989: YF2121 1990: YF2124, 2125 1992: YF2127-2129 1993: YF2132 1995: YF2135 1996: YF2138 1997: YF2141 |
none |
none |
in service (2019): YF2121, 2124, 2125, 2127-2129, 2132, 2135, 2138, 2141 |
Technical data
| Displacement standard, t | 24 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 17.1 |
| Breadth, m | 4.37 |
| Draught, m | 1.17 |
| No of shafts | 2 |
| Machinery | YF2121, 2124, 2125, 2127-2129, 2132, 2135, 2141: 2 Isuzu E120-MF6R diesels YF2138: 2 UM6 SD1 TCA diesels |
| Power, h. p. | 450 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 130(9) |
| Armament | none |
| Military load | 80 troops or 30 t of cargo |
| Complement | 4 |
Standard scale images
YF2121 2000
Graphics
YF2135 2007
Project history
Officially designated "Communications Boats." Design based on U.S. LCM(6) landing craft. Employed as local transports for stores and personnel.
Modernizations
None.
Naval service
No significant events.
