MIURA tank landing ships (1975 - 1977)

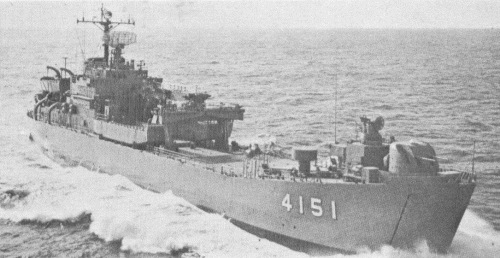

Miura 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate
みうら [Miura] LST4151   IHI, Tokyo 26.11.1973 13.8.1974 25.1.1975 stricken 4.2000
おじか [Ojika] LST4152   IHI, Tokyo 10.6.1974 4.9.1975 22.3.1976 stricken 8.2001
さつま [Satsuma] LST4153   IHI, Tokyo 26.5.1975 12.5.1976 17.2.1977 stricken 6.2002


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate みうら [Miura] LST4151   IHI, Tokyo 26.11.1973 13.8.1974 25.1.1975 stricken 4.2000 おじか [Ojika] LST4152   IHI, Tokyo 10.6.1974 4.9.1975 22.3.1976 stricken 8.2001 さつま [Satsuma] LST4153   IHI, Tokyo 26.5.1975 12.5.1976 17.2.1977 stricken 6.2002

Technical data


Displacement standard, t

2000
Displacement full, t

3200
Length, m

94.0 pp 98.0 oa
Breadth, m

14.0
Draught, m

3.00
No of shafts

2
Machinery

2 Kawasaki-MAN V8V22/30AMTL diesels
Power, h. p.

4400
Max speed, kts

14
Fuel, t

diesel oil
Endurance, nm(kts)


Armament

1 x 1 - 76/50 Mk 33, 1 x 2 - 40/60 Mk 1 mod. 2
Military load

2 LCVP, 2 LCM(6), 10 tanks or 1800 t cargo, 200 troops
Electronic equipment

4151: OPS-18, OPS-14, FCS-1B radars

4152, 4153: OPS-18, OPS-14, Mk 34 radars
Complement

118


Standard scale images


<i>Miura </i>2000
Miura 2000


Graphics


<i>Miura </i>1976
Miura 1976


Project history

Two LCVPs were slung under davits, and a travelling gantry handled two LCMs carried on the foredeck.

Modernizations

None.

Naval service

No significant events.
