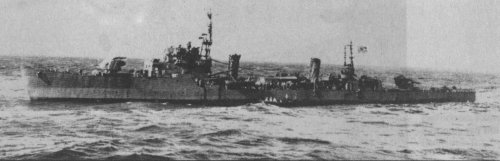

Tachibana 1945
| Name | No | Builder | Laid down | Launched | Comp | Fate |
| 橘 <Tachibana> | Yokosuka K K | 7/1944 | 14/10/1944 | 1/1945 | sunk 14/7/1945 | |
| 楡 <Nire> | Maizuru K K | 8/1944 | 25/11/1944 | 1/1945 | damaged 22/6/1945, never repaired | |
| 蔦 <Tsuta> | Yokosuka K K | 7/1944 | 2/11/1944 | 2/1945 | surrendered 8/1945, to China 7/1947 (Hua Yang) | |
| 萩 <Hagi> | Yokosuka K K | 9/1944 | 27/11/1944 | 3/1945 | surrendered 8/1945, to United Kingdom 7/1947, BU | |
| 柿 <Kaki> | Yokosuka K K | 10/1944 | 11/12/1944 | 3/1945 | damaged 6/6/1945, never repaired | |
| 椎 <Shii> | Maizuru K K | 9/1944 | 13/1/1945 | 3/1945 | damaged 5/6/1945, never repaired, to Soviet Union 7/1947 (Вольный <Vol`nyy>) | |
| 梨 <Nashi>, 5/1956- わかば <Wakaba> | DE261 | Kawasaki, Kobe | 9/1944 | 17/1/1945 | 3/1945 | sunk 28/7/1945, salvaged 1955, JMSDF 5/1956, stricken 1972 |
| 菫 <Sumire> | Yokosuka K K | 10/1944 | 27/12/1944 | 3/1945 | surrendered 8/1945, to United Kingdom 8/1947, sunk as target | |
| 榎 <Enoki> | Maizuru K K | 10/1944 | 27/1/1945 | 3/1945 | sunk 26/6/1945 | |
| 楠 <Kusunoki> | Yokosuka K K | 11/1944 | 18/1/1945 | 4/1945 | surrendered 8/1945, to United Kingdom 7/1947, BU | |
| 雄竹 <Odake> | Maizuru K K | 11/1944 | 10/3/1945 | 5/1945 | surrendered 8/1945, to USA 7/1947, BU | |
| 初桜 <Hatsuzakura> | Yokosuka K K | 12/1944 | 20/2/1945 | 5/1945 | surrendered 8/1945, to Soviet Union 7/1947 (Ветреный <Vetrenyy>) | |
| 樺 <Kaba> | Fujinagata, Osaka | 10/1944 | 27/2/1945 | 5/1945 | surrendered 8/1945, to USA 8/1947, BU | |
| 初梅 <Hatsuyume> | Maizuru K K | 12/1944 | 25/5/1945 | 6/1945 | damaged 26/6/1945, never repaired, to China 7/1947 (Hsin Yang) | |
| 八重桜 <Yaezakura> | Yokosuka K K | 12/1944 | 17/3/1945 | --- | cancelled 6/1945 | |
| 栃 <Tochi> | Yokosuka K K | 1/1945 | 28/5/1945 | --- | cancelled 6/1945 | |
| 矢竹 <Yadake> | Yokosuka K K | 1/1945 | 1/5/1945 | --- | cancelled 6/1945 | |
| 桂 <Katsura> | Fujinagata, Osaka | 11/1944 | 23/6/1945 | --- | cancelled 6/1945 | |
| 若桜 <Wakazakura> | Fujinagata, Osaka | 1/1945 | --- | --- | cancelled 5/1945 | |
| 梓 <Azura> | Yokosuka K K | 1/1945 | --- | --- | cancelled 4/1945 | |
| 榊 <Sakaki> | Yokosuka K K | 12/1944 | --- | --- | cancelled 4/1945 | |
| 葛 <Kuzu> | Yokosuka K K | 3/1945 | --- | --- | cancelled 4/1945 | |
| 菱 <Hishi> | Maizuru K K | 2/1945 | --- | --- | cancelled 4/1945 |
|
Displacement standard, t |
1289 |
|
Displacement full, t |
1640 |
|
Length, m |
92.2 pp 98.0 wl 100.0 oa |
|
Breadth, m |
9.35 |
|
Draught, m |
3.37 |
|
No of shafts |
2 |
|
Machinery |
Kampon geared steam turbines, 2 Kampon boilers |
|
Power, h. p. |
19000 |
|
Max speed, kts |
27.8 |
|
Fuel, t |
oil 370 |
| Endurance, nm(kts) | 4680(16) |
|
Armament |
1 x 2 - 127/40 89-shiki, 1 x 1 - 127/40 89-shiki, 4 x 3 - 25/60 96-shiki, 17 x 1 - 25/60 96-shiki, 1 x 4 - 610 TT, 7 DCT, 2 DCR (60) |
| Sensors |
13-go, 22-go radars |
|
Complement |
211 |
Ship project history: Simplified variant of Matsu class escort destroyers: all constructions were redesigned for the purpose of reduction of labour input of manufacturing. Designers have refused, whenever possible, from curvilinear profiles, bridge and masts had more simple form, soft steel instead of the ship-building steel was used, that has led to displacement growth on 50t. Outwardly practically they did not differ from Matsu, except a transom stern and some narrowed underwater hull part.
Under the additional program of 1942 13 ships were ordered and additional 20 under the program 1943/1944. Under the program 1944/1945 it was provided building of 80 more ships, however orders for them were not placed. In March, 1945 orders on 10, yet not laid down destroyers of 1943/1944 program (amongs Nos4801-4820) were cancelled. 17/4/1945 building of Azusa, Hishi, Kuzu and Sakaki was suspended. 11/5/1945 works on Wakazakura were suspended. During the period from 18/5 to 23/6/1945 completion of already launched Tochi, Yadake, Yaezakura and Katsura has been suspended. Being in 60% availability Yaezakura 18/7/1945 was sunk in Yokosuka harbour by American carrier aircraft.
Modernizations: (1955 - 12/5/1956, Kure D Yd), Wakaba (ex-Nashi): was salvaged, repaired and commissioned by JMSDF as escort / TS with data as follows:
|
Displacement standard, t |
1289 |
|
Displacement full, t |
1640 |
|
Length, m |
92.2 pp 98.0 wl 100.0 oa |
|
Breadth, m |
9.35 |
|
Draught, m |
3.37 |
|
No of shafts |
2 |
|
Machinery |
Kampon geared steam turbines, 2 Kampon boilers |
|
Power, h. p. |
14000 |
|
Max speed, kts |
27 |
|
Endurance, nm (kts) |
4680 (16) |
|
Armament |
1 x 2 - 76/50 Mk33, 1 x 24 - 178 Hedgehog DCT, 6 DCT, 2 DCR |
| Sensors | |
|
Complement |
206 |
(9/1957 - 3/1958), Wakaba: was converted to radar picket, SPS-5B and SPS-12 radars were installed.
Naval service: Enoki 26/6/1945 was mined at coast of Japan and foundered on shallow water; subsequently she was salvaged and handed over on demolition. Tachibana 14/7/1945 was sunk at Hakodate by American carrier aircraft. Nashi 28/7/1945 off Kure was sunk by American carrier aircraft. Shii 5/6/1945 was damaged on a mine in Bungo Strait and till the end of war was not repaired. Kaki 6/6/1945 was damaged on a mine, never repaired. Nire 22/6/1945 was hard damaged at Kure by American Army aircraft and was not under repair. Hatsuume 26/6/1945 was hard damaged on a mine off Maizuru and till the end of war was not repaired. Sumire in 1947 was received by UK on a reparation and the same year sunk as target. Hatsuume and Tsuta in July, 1947 were transferred to China on a reparation. Shii and Hatsuzakura in July, 1947 were transferred to USSR on a reparation. Nashi in 1954 was salvaged, repaired and 31/5/1956 commissioned by JMSDF as Wakaba.
Nashi was salvaged in 1955 and commissioned by MSDF 5/1956 as Wakaba. She was converted to test ship in 1968 and eventually stricken in 1972.
Hatsuzakura 1945
© Ivan Gogin, 2008-10
