ASAHI missile destroyers (2018-2019)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| あさひ [Asahi] | DD119 | Mitsubishi, Nagasaki | 4.8.2015 | 19.10.2016 | 7.3.2018 | in service (2019) | |
| しらぬい [Shiranui] | DD120 | Mitsubishi, Nagasaki | 20.5.2016 | 12.10.2017 | 27.2.2019 | in service (2019) |
Technical data
| Displacement standard, t | 5100 |
|---|---|
| Displacement full, t | 6850 |
| Length, m | 151.0 |
| Breadth, m | 17.6 wl 18.3 oa |
| Draught, m | 5.40 |
| No of shafts | 2 |
| Machinery | COGLAG: 2 IHI- General Electric LM-2500 gas turbines + gas turbine-generators, 2 electric motors |
| Power, h. p. | 56000 + 6800 = 62800 |
| Max speed, kts | 30 |
| Fuel, t | gas turbine oil |
| Endurance, nm(kts) | |
| Armament | 2 x 4 SSM-4 SSM (8 SSM-4), 1 x 16 x4 ESSM SAM / SUM-07 ASuM (VLS, 16 RIM-162 +12 SUM-07), 1 x 1 - 127/62 Mk 45 mod. 5, 2 x 6 - 20/76 Mk 15 Phalanx Block 1B, 2 x 3 - 324 HOS-303 TT, 1 helicopter (SH-60K Seahawk) |
| Electronic equipment | OPS-20C, OPY-1, 2x Mk 90 radars, OQQ-24, OQR-4 sonars, NOLQ-3D, NORC-4B ECM suites, 2x Mk 36 SRBOC decoy RL, FAJ, MOD torpedo decoys, OYQ-11 CCS |
| Complement | 230 |

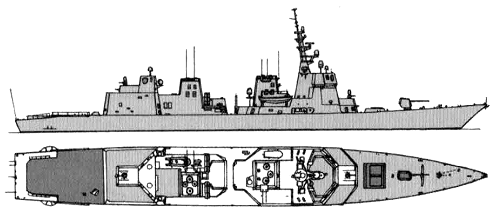

Standard scale images
similar Akizuki 2015
Project history
Enhanced version of Akizuki class with new electronics and propulsion plant. VLS will have only 16 cells (for quad pack of ESSM SAMs and home-designed SUM-07 ASW missiles) but can be enlarged to 32 cells, volumes are reserved.
Modernizations
None.
Naval service
None.
