NOJIMA large patrol vessel (1989)

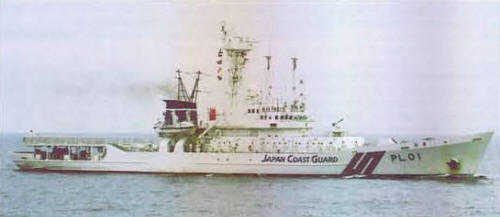

Oki 2005
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| のじま [Nojima], 11.1997- おき [Oki] | PL01 | Ishikawajima, Tokyo | 16.8.1988 | 30.5.1989 | 21.9.1989 | deleted 1.2017, to Malaysia (Arau) |
Technical data
| Displacement standard, t | 993 |
|---|---|
| Displacement normal, t | 1500 |
| Length, m | 87.0 |
| Breadth, m | 10.5 |
| Draught, m | 3.50 |
| No of shafts | 2 |
| Machinery | 2 Fuji 8S40B diesels |
| Power, h. p. | 7000 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 8000(14) |
| Armament | 1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck |
| Electronic equipment | 2x JMA 1596 radars |
| Complement | 39 |
Standard scale images
Oki 2000
Graphics
Oki 2005
Project history
Authorized under the 1986 budget. Sharp sheer to bow improves seakeeping while keeping amidships freeboard low. Unusual in having a raised helicopter deck over the fantail and a second bridge above and abaft the main pilothouse. Fin stabilizers are fitted. A rescue diving crew is assigned to the ship.
Modernizations
None.
Naval service
No significant events.
