MIURA large patrol vessel (1998)
Miura 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| みうら [Miura] | PL22 | Sumitomo, Uraga | 12.3.1997 | 11.3.1998 | 28.10.1998 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 3167 |
| Length, m | 115.2 |
| Breadth, m | 14.0 |
| Draught, m | 4.80 |
| No of shafts | 2 |
| Machinery | 2 Niigata 8MG32CLX diesels |
| Power, h. p. | 8000 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 8000(18) |
| Armament | 1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck |
| Electronic equipment | 3x JMA radars |
| Complement | 40 + 150 passengers |

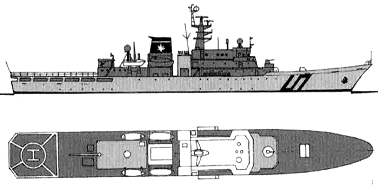

Standard scale images
Miura 2010
Graphics

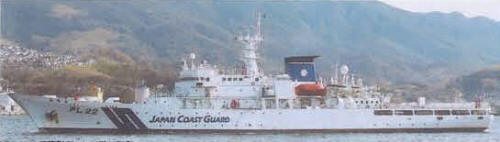

Miura 2007
Project history
PL22 is employed primarily for Japan Coast Guard School enlisted training duties. Externally PL22 is very similar to Kojima (PL21). Has a large helicopter deck but no hangar and is equipped with FLUME-type water tank stabilization system.
Modernizations
None.
Naval service
No significant events.
