BIZAN patrol craft (1966-1969)

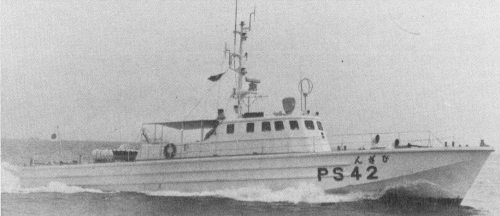

Bizan 1974
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PS42 びざん [Bizan] PS47 あさま [Asama] PS48 しらみね [Shiramine] |
Mitsubishi, Shimonoseki: PS42, 47, 48 |
3/1966: PS42 1-12/1969: PS47, 48 |
none |
none |
2/1987: PS42 3/1988: PS47 3/1993: PS48 |
Technical data
| Displacement standard, t | 70 |
|---|---|
| Displacement full, t | 85 |
| Length, m | 26.0 |
| Breadth, m | 5.60 |
| Draught, m | 0.87 |
| No of shafts | 2 |
| Machinery | PS42, 47: 2 Mitshubishi 12DH20MTK diesels PS48: 2 Ikegai-Mercedes-Benz MB820Db diesels |
| Power, h. p. | PS42, 47: 1140 PS48: 2200 |
| Max speed, kts | PS42, 47: 19 PS48: 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(18) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | MD808 radar |
| Complement | 14 |
Graphics
Bizan 1974
Project history
Rated as small patrol vessel. Light metal construction.
Modernizations
None.
Naval service
No significant events.
