10-GO fast attack craft (torpedo) (1962)

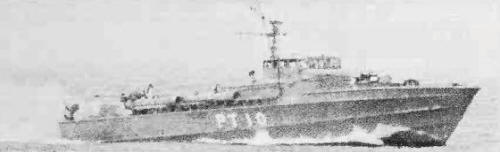

10-go 1971
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 10号 [10-go] | PT810 | Mitsubishi Zosen, Shimonoseki | 9/1960 | 28.7.1961 | 5/1962 | deleted 1975 |
Technical data
| Displacement standard, t | 85 |
|---|---|
| Displacement full, t | 120 |
| Length, m | 32.0 |
| Breadth, m | 8.50 |
| Draught, m | 1.20 max |
| No of shafts | 3 |
| Machinery | 3 Mitsubishi 24WZ-30MC diesels |
| Power, h. p. | 9000 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) |
|
| Armament | 2 x 1 - 40/60 Mk 3, 4 - 533 TT |
| Electronic equipment | OPS-13 radar, dipping sonar, sonobuoys |
| Complement | 20 |
Standard scale images
10-go 1965
Graphics
10-go 1971
Project history
Authorized under the 1960 programme. Built as a test platform for the follow-on, mass produced 11-go class. Aluminium alloy hull.
Modernizations
None.
Naval service
No significant events.
