KAMOI seaplane tender (1922 / 1933)





Kamoi Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
神威 [Kamoi]   267 New York SB, Camden, USA // Uraga, Tokyo 14.9.1921 8.6.1922 6.1922 // 6.1933 tanker 1943


Technical data


Displacement standard, t17000
Displacement full, t19240 on trials
Length, m

148.9 pp 151.2 oa

Breadth, m

20.4

Draught, m

8.43

No of shafts2
Machinery2 electric motors, 2 Curtiss turbine-generators, 2 Yarrow boilers
Power, h. p.

9000

Max speed, kts

15

Fuel, tcoal 2500
Endurance, nm(kts)
Armament

2 x 1 - 140/50 3-shiki, 2 x 1 - 76/40 3-shiki, 2 x 2 - 13.2/76, 12 seaplanes (E1Y, E2N, E3A, E4N, E5Y)

Complement


Standard scale images

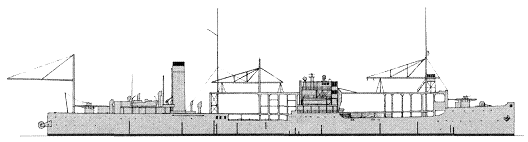

<i>Kamoi</i> 1933
Kamoi 1933


Graphics


<i> Kamoi</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Kamoi Many thanks to Wolfgang Stöhr for additional information on this page.


Aircraft facilities

Aircraft based on deck.

Project history

Former tanker. At conversion experience with Notoro was used. Differing from the latter seaplanes have been better protected from bad weather at the expense of light hinged platforms over upper deck. Seaplanes flied off from water and landed also there and lifted to a deck by cargo booms.

Modernizations

None.

Naval service

Re-rated as flying boat tender in 1940.
