IMPERIAL JAPANESE NAVY (JAPAN)

AIRCRAFT CARRYING SHIPS

seaplane tenders converted from merchant vessels

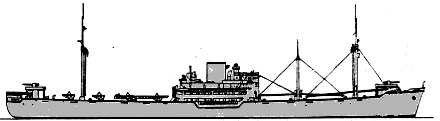

Kimikawa Maru 1941

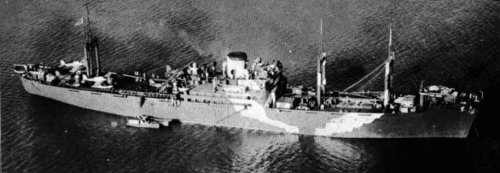

Kimikawa Maru 1942

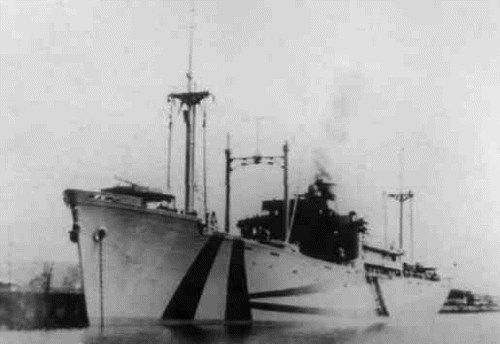

Sagara Maru 1942

Sanyo Maru 1942

Name Launched // Comm. Builder Tonnage, BRT Dimensions, m Speed, kts Engine, Power hp Armament Fate
迦具丸 <Kagu Maru> 18/4/1936 // 8/1937 Harima Zosen 6807 138.2x18.6x9.5 17 1 diesel, 6000 2 x 1 - 152/40, 2 x 1 - 13.2, 12 seaplanes returned 12/1938
神川丸 <Kamikawa Maru> 13/12/1936 // 9/1937 Kawasaki, Kobe 6853 146.0x19.0x9.0 17 1 diesel, 7600 2 x 1 - 152/40, 2 x 1 - 13.2, 12 seaplanes returned 12/1938, commissioned again 11/1939, sunk 28/5/1943
君川丸 <Kimikawa Maru> 11/3/1937 // 7/1941 Kawasaki, Kobe 6863 146.0x19.0x9.0 16 1 diesel, 7600 2 x 1 - 152/40, 2 õ 1 - 76/40, 2 x 1 - 13.2, 12 seaplanes transport 10/1943
衣笠丸 <Kinugasa Maru> 26/12/1935 // 9/1937 Kawasaki, Kobe 6808 139.0x18.6x9.0 17 1 diesel, 7600 2 x 1 - 152/40, 2 x 1 - 13.2, 12 seaplanes returned 4/1938
聖川丸 <Kiyokawa Maru> 16/2/1937 // 10/1941 Kawasaki, Kobe 6863 146.0x19.0x9.0 16 1 diesel, 7600 2 x 1 - 152/40, 2 õ 1 - 76/40, 2 x 1 - 13.2, 12 seaplanes transport 12/1942
国川丸 <Kunikawa Maru> 12/6/1937 // 7/1942 Kawasaki, Kobe 6863 146.0x19.0x9.0 17 1 diesel, 7600 2 x 1 - 152/40, 2 x 1 - 13.2, 12 seaplanes transport 10/1943
能代丸 <Noshiro Maru> 28/6/1934//7/1941 Mitsubishi, Nagasaki 7184 136.7x19.0x8.43 18.5 1 diesel, 6700 2 x 1 - 152/40, 2 x 1 - 13.2, 12 seaplanes returned 8/1941, later AMC
相良丸 <Sagara Maru> 23/3/1940 // 9/1941 Mitsubishi, Nagasaki 7189 146.0x19.0x9.7 19 2 diesels, 16000 2 x 1 - 152/40, 2 x 1 - 40/62, 8 seaplanes transport 12/1942
讃岐丸 <Sanuki Maru> 8/2/1939 // 9/1941 Mitsubishi, Nagasaki 7189 146.0x19.0x9.7 19 2 diesels, 16000 2 x 1 - 152/40, 2 x 1 - 40/62, 8 seaplanes transport 12/1942
山陽丸 <San`yo Maru> 15/10/1930 // 8/1941 Mitsubishi, Nagoya 8360 136.0x18.0x12.0 18 diesels 2 x 1 - 152/40, 2 x 1 - 13.2, 8 seaplanes transport 10/1943

Aircraft facilities: There were 2 catapults

Ship project history: Seaplane tenders, converted from merchant vessels.

Modernizations: None.

Naval service: Kamikawa Maru 28/5/1943 was sunk N off New Ireland by American submarine Scamp.

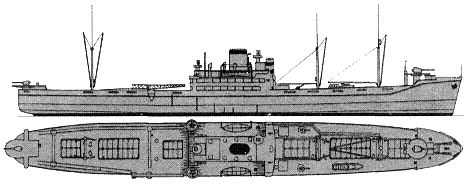

Kimikawa Maru

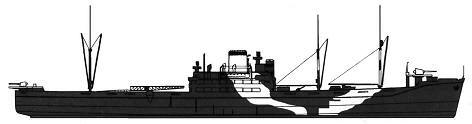

Sagara Maru
