MARCANTONIO BRAGADIN medium submarine minelayers (1931)





Marcantonio Bragadin

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Marcantonio Bragadin (ex-Marcantonio Bragadino)     Tosi, Taranto 2.1927 21.7.1929 11.1931 discarded 2.1948
Filippo Corridoni     Tosi, Taranto 7.1927 30.3.1930 11.1931 discarded 2.1948


Technical data


Displacement standard, t833
Displacement normal, t

965 / 1068

Length, m

71.5

Breadth, m

6.15

Draught, m

4.98

No of shafts

2

Machinery

2 Tosi diesels / 2 Marelli electric motors

Power, h. p.

1500 / 1000

Max speed, kts

11.5 / 7

Fuel, t

diesel oil 41

Endurance, nm(kts)9000(8) / 72(4)
Armament

1 x 1 - 102/35 Schneider-Armstrong 1914-15, 2 x 1 - 13.2/76, 4 - 533 TT (bow, 6), 16 - 24 mines

Electronic equipmenthydrophone
Complement

55

Diving depth operational, m90


Standard scale images

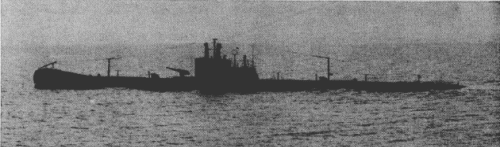

<i>Marcantonio Bragadin</i> 1940
Marcantonio Bragadin 1940


Graphics


<i>Marcantonio Bragadin</i>
Marcantonio Bragadin


Project history

Submarine minelayers, designed on the basis of Pisani class. Single-hulled. Mines were stored in two horizontal tubes in aft hull part.

During trials it was found out, that mine tubes were arranged unsuccessfully, and in 1935 submarines were put on refit. During works hull length was moderated (at the expense of after end), external bulges were installed and fore end form was changed as on Bandiera class.

Modernizations

1935: stern was rebuilt and bulges were fitted (965 / 1068 t, 68.0 x 7.10 x 4.30 m).

Naval service

No significant events.
