GOVERNOLO steel gunboat (1896)

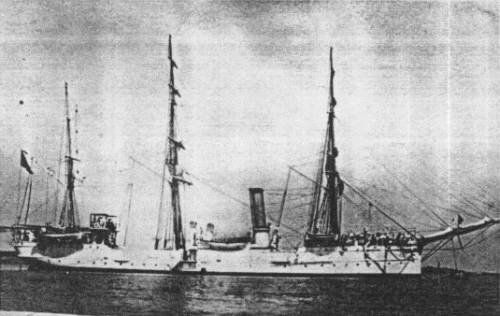

Governolo

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Governolo     R. Arsenale di Venezia 4.1892 1.5.1894 5.1896 discarded 11.1912


Technical data


Displacement normal, t

1203

Displacement full, t
Length, m

56.4 pp

Breadth, m

10.3

Draught, m

4.61

No of shafts

1

Machinery

1 VC, 3 cylindrical boilers

Power, h. p.

1100

Max speed, kts

14

Fuel, t

coal

Endurance, nm(kts)



Armament

4 x 1 - 120/32 B(s.o.), 4 x 1 - 57/43 N, 2 x 1 - 37/25 H lungo, 2 x 1 - 11.4/94, 1 - 450 TT (beam)

Complement

137



Standard scale images


similar <i>Cariddi </i>1880
similar Cariddi 1880


Graphics


<i>Governolo</i>
Governolo


Project history

Barque-rigged, copper-sheathed gunboat designed by Eng Insp Ernesto Martinez.

Modernizations

None.

Naval service

No significant events.
