CESARE ROSSAROL flotilla leader (1915 / 1920)

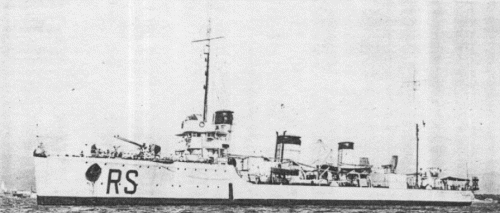

Cesare Rossarol 1930

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Cesare Rossarol (ex-B97) RS   Blohm & Voss, Hamburg, Germany 1914 15.12.1914 13.2.1915 // 16.9.1920 stricken 1.1939


Technical data


Displacement normal, t

1374

Displacement full, t

1843

Length, m

96.0 wl 98.0 oa

Breadth, m

9.35

Draught, m

3.87 mean deep

No of shafts

2

Machinery

2 Marine steam turbines, 4 Marine boilers

Power, h. p.

40000

Max speed, kts

36.5

Fuel, t

oil 527

Endurance, nm(kts)2600(14)
Armament

4 x 1 - 105/42 Tbts L/45 C/16, 2 x 2 - 500 TT, 2 x 1 - 500 TT (8), 24 mines

Complement

114



Standard scale images


<i>Cesare Rossarol</i> 1920
Cesare Rossarol 1920


Graphics


<i>Cesare Rossarol</i> 1930
Cesare Rossarol 1930


Project history

Ex-German destroyer leader transferred by reparations, commissioned 1.12.1924.

Modernizations

1920 - 1924: - 4 x 1 - 105/42, 2 x 1 - 500 TT; + 1 x 2 - 120/45 Schneider-Canet-Armstrong 1918-19, 1 x 1 - 120/45 Schneider-Canet-Armstrong 1918, 2 x 1 - 76/40 Ansaldo 1917, 2 x 1 - 6.5/80, mine stowage increased to 29. Displacement was 1655 t (norm.) / 1756 t (full). Complement was 150.

1931: one boiler was removed; - 2 x 2 - 500 TT; + 2 x 2 - 450 TT

1932: Cesare Rossarol was armed with 1 x 2 - 120/45 Scheider-Canet-Armstrong 1918-19 only.

1935: armament consisted of 1 x 2 - 120/45 Schneider-Canet-Armstrong 1918-19, 1 x 1 - 120/45 Schneider-Canet-Armstrong 1918, 2 x 1 - 76/40 Ansaldo 1917, 2 x 1 - 6.5/80, 2 x 2 - 450 TT, 29 mines.

Naval service

In 1932-1935 Cesare Rossarol was used as test ship.
