LAMPO destroyers (1900 - 1902)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Lampo | Schichau, Elbing, Germany | 5.1899 | 7.10.1899 | 6.1900 | discarded 3.1920 | ||
| Freccia | Schichau, Elbing, Germany | 1899 | 23.11.1899 | 5.1902 | beached 12.10.1911 | ||
| Dardo | Schichau, Elbing, Germany | 8.1899 | 7.2.1900 | 3.1901 | discarded 3.1920 | ||
| Strale | Schichau, Elbing, Germany | 11.1899 | 19.5.1900 | 7.1901 | discarded 1.1924 | ||
| Euro, 9.1924- Strale | Schichau, Elbing, Germany | 1.1900 | 27.8.1900 | 10.1901 | discarded 11.1924 | ||
| Ostro | Schichau, Elbing, Germany | 3.1900 | 9.2.1901 | 12.1901 | discarded 9.1920 |
Technical data
| Displacement normal, t | 315 |
|---|---|
| Displacement full, t | 348 |
| Length, m | 60.0 pp 62.1 oa |
| Breadth, m | 6.50 |
| Draught, m | 2.60 |
| No of shafts | 2 |
| Machinery | 2 VTE, 4 Thornycroft boilers |
| Power, h. p. | 5230 - 5998 |
| Max speed, kts | 30 (trials ]31) |
| Fuel, t | coal 80 |
| Endurance, nm(kts) | 2000(12) |
| Armament | 1 x 1 - 76/40 A, 5 x 1 - 57/43 N, 2 x 1 - 350 TT Strale, Ostro: 6 x 1 - 57/43 N, 2 x 1 - 350 TT |
| Complement | 53 - 61 |
Standard scale images

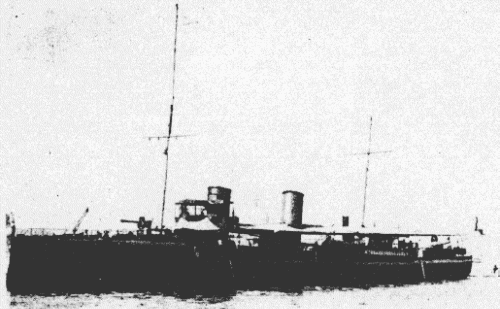

Lampo 1905
Graphics
Project history
Design of Schichau: strong, fast ships with one serious lack, bad seaworthiness.
Modernizations
1915, all survived: + 12 mines
Naval service
Freccia ran aground 12.10.1911 at entrance to Tripoli harbour (Libya). Euro was reclassified to torpedo boat in July 1921 and used as target since 1923.
