"Soldati", 2nd group destroyers (ALPINO) (1910)

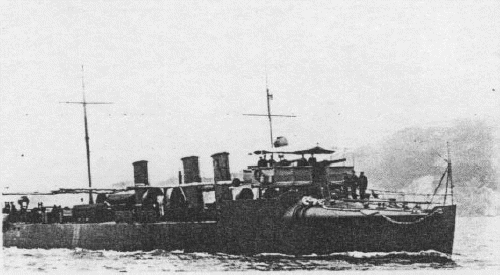

Pontiere 1910

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Alpino AP   Ansaldo, Genova 12.1905 27.11.1909 4.1910 stricken 6.1928
Fuciliere FC, FL   Ansaldo, Genova 10.1905 21.8.1909 1.1910 stricken 12.1932
Pontiere PN   Ansaldo, Genova 11.1905 3.1.1910 2.1910 stricken 7.1929


Technical data


Displacement normal, t

407

Displacement full, t424
Length, m

64.4 wl 65.0 oa

Breadth, m

6.10

Draught, m

2.10

No of shafts

2

Machinery

2 VTE, 3 Thornycroft boilers

Power, h. p.

6000

Max speed, kts

28.5

Fuel, t

oil 65

Endurance, nm(kts)1600(12)
Armament

4 x 1 - 76/40 A, 3 x 1 - 450 TT, 10 mines

Complement

50



Standard scale images


<i>nearly sister-ship Artigliere</i> 1910
nearly sister-ship Artigliere 1910


Graphics


<i>Pontiere</i> 1910
Pontiere 1910


Project history

Last series of British "destroyers" successors, in essence large torpedo boats.

Modernizations

None.

Naval service

All were reclassified as torpedo boats in July 1921.
