V5819 2004

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
V.5800-5833	Motomar, Lavagna CN Ascolani, San Benedetto del Tronto Mericraft, Napoli Cantieri Balsamo, Brindisi Cantieri San Prospero, Anagni	1979: V.5800-5805?, 5807 1980: V5806, 5808-5812? 1981: V5813-5833?	none	none	2010: V5801, 5821, 5830 2012: V5806, 5825 2013: V5800, 5803, 5807, 5808, 5813, 5817, 5818, 5822, 5824, 5829, 5832, 5833 2017: V5804, 5809-5811, 5816, 5820, 5823, 5827, 5828, 58331 in service (2019): V5802, 5805, 5812, 5814, 5815, 5819, 5826

Technical data

Displacement standard, t
Displacement full, t	16
Length, m	12.6
Breadth, m	3.60
Draught, m	1.20
No of shafts	2
Machinery	2 Fiat-AIFO 828SRM diesels
Power, h. p.	1000
Max speed, kts	26
Fuel, t	diesel oil 0.4
Endurance, nm(kts)	645(19)
Armament	1 x 1 - 7.6/90
Electronic equipment	Furuno radar
Complement	5

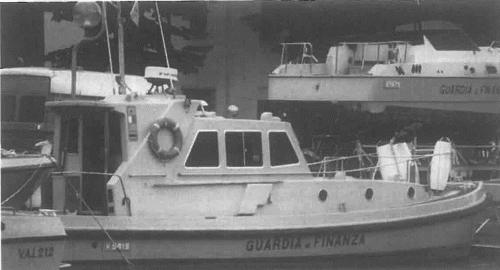

Graphics

Project history

GRP construction. Keith Nelson-designed hulls. Near-sisters are in the coast guard and the Carabinieri fleets. All are essentially identical, unlike the coast guard series.

Modernizations

None.

Naval service

No significant events.
