Ottonelli 2000

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
G78 Ottonelli G79 Barletta G88 La Malfa G89 Rosati	Intermarine, Sarzana: G78, 79, 88, 89	1996: G78, 79 1997: G88, 89	none	none	in service (2019): G78, 79, 88, 89

Technical data

Displacement standard, t	73
Displacement full, t	95
Length, m	27.0
Breadth, m	6.95
Draught, m	1.20
No of shafts	2
Machinery	2 MTU 16V396 TB94 diesels
Power, h. p.	6965
Max speed, kts	43
Fuel, t	diesel oil
Endurance, nm(kts)	1200(18.5)
Armament	1 x 1 - 30/82 OTO-Breda, 2 x 1 - 7.6/90
Electronic equipment	BX-3072A, SC-1410 radars, Medusa Mk 3 e/o director, SVIR e/o detector
Complement	14

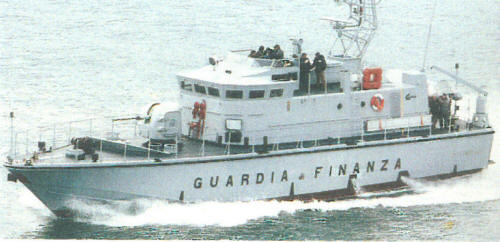

Graphics

Project history

Bigliani III series. GRP hull.

Modernizations

None.

Naval service

No significant events.
