MONTE SPERONE patrol craft (2014)
Monte Sperone
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Monte Sperone | P01 | Adria, Vittoria | 7.10.2013 | 8/2014 | in service (2019) | ||
| Monte Cimone | P02 | Adria, Vittoria | 5.11.2013 | 12/2014 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 430 |
| Length, m | 50.2 pp 55.0 oa |
| Breadth, m | 9.55 |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 2 MTU 20V4000 M93L diesels |
| Power, h. p. | 11530 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | 2x radars |
| Complement | 27 |
Standard scale images

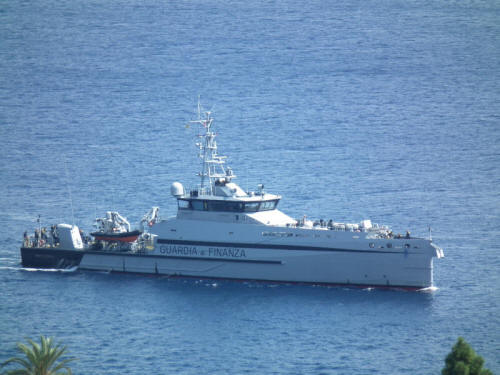

Monte Sperone 2015
Graphics
Monte Sperone
Project history
Ordered in 2013. Sea Axe vertical bow. Have 2 fast craft on davits.
Modernizations
None.
Naval service
No significant events.
