MAZZEI patrol boats (1998)
Mazzei 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Mazzei | G01 | Intermarine, Sarzana | 22.4.1996 | 16.5.1997 | 24.4.1998 | in service (2019) | |
| Vaccaro | G02 | Intermarine, Sarzana | 23.9.1996 | 1.9.1997 | 29.4.1998 | in service (2019) |
Technical data
| Displacement standard, t | 102 |
|---|---|
| Displacement full, t | 134 |
| Length, m | 32.0 pp 35.5 oa |
| Breadth, m | 7.55 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TB94 diesels |
| Power, h. p. | 6965 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1260(15) |
| Armament | 1 x 1 - 30/82 OTO-Breda, 2 x 1 - 7.6/90 |
| Electronic equipment | BX-3072A, SC-1410 radars, Medusa Mk 3 e/o director, SVIR e/o detector |
| Complement | 14 + 3 instructors + 18 trainees |
Graphics

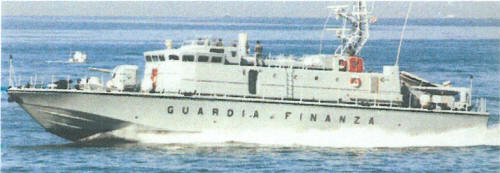

Mazzei 2001
Project history
Bigliani IV series. GRP hull. Used as training ships.
Modernizations
None.
Naval service
No significant events.
