LAGANÀ patrol boats (2004-2006)





Laganà 2007

Ships


Names Builders Completed Losses Transfers Discarding

G116 Laganà

G117 Sanna

G118 Inzucchi

G119 Vitali

G120 Calabrese

G121 Urso

G122 La Spina

G123 Salone

G124 Cavatorto

G125 Fusco

Intermarine, Sarzana: G116-125

2004: G116-118

2005: G119, 120

2006: G121-125

none

none

in service (2019): G116-125



Technical data


Displacement standard, t73
Displacement full, t95
Length, m27.0
Breadth, m6.95
Draught, m1.40
No of shafts2
Machinery2 MTU 16V396 TB94 diesels
Power, h. p.6965
Max speed, kts40
Fuel, tdiesel oil
Endurance, nm(kts)430(18)
Armament

1 x 1 - 12.7/90

Electronic equipment2x radars, Medusa Mk 3 e/o director, SVIR e/o detector
Complement14


Graphics

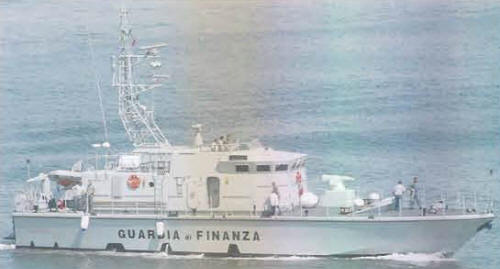

<i>Laganà </i>2007
Laganà 2007


Project history

Bigliani VI series. Composite construction.

Modernizations

None.

Naval service

No significant events.
