DI BARTOLO patrol boats (2003-2007)
Di Bartolo 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Di Bartolo | G03 | Intermarine, Sarzana | 26.2.2003 | 3.10.2003 | in service (2019) | ||
| Avallone | G04 | Intermarine, Sarzana | 28.5.2003 | 29.1.2004 | in service (2019) | ||
| Oltramonti | G05 | Intermarine, Sarzana | 16.7.2003 | 24.6.2004 | in service (2019) | ||
| Barbarisi | G06 | Intermarine, Sarzana | 26.7.2006 | 12.7.2007 | in service (2019) | ||
| Sottotenente Paolini | G07 | Intermarine, Sarzana | 26.7.2006 | 20.12.2007 | in service (2019) |
Technical data
| Displacement standard, t | 102 |
|---|---|
| Displacement full, t | 134 |
| Length, m | 32.0 pp 35.5 oa |
| Breadth, m | 7.55 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TB94 diesels |
| Power, h. p. | 6965 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 900(20) |
| Armament | 1 x 1 - 30/82 OTO-Breda, 2 x 1 - 7.6/90 |
| Electronic equipment | BX-3072A, SC-1410 radars, Medusa Mk 3 e/o director, SVIR e/o detector |
| Complement | 14 |
Graphics

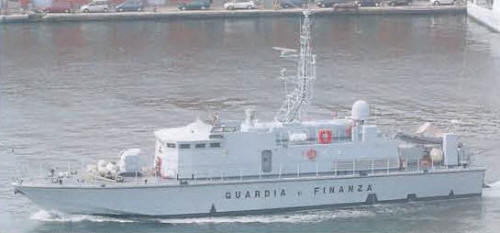

Di Bartolo 2007
Project history
Bigliani V series (enlarged Bigliani III with longer superstructure). GRP hull.
Modernizations
None.
Naval service
No significant events.
