CP265 patrol boats (2001-2005)
CP288 2007
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP265-292 |
Rodriguez, Messina: CP265-292 |
2001: CP265-273 2002: CP274-283 2003: CP285, 286 2004: CP284, 287 2005: CP288-292 |
none |
Panama, 5.2012: CP266 (Presidente Guillermo Endara), CP270 (Presidente Ernesto Pérez Balladares), CP272 (Presidente Mireya Moscoso), CP275 (Presidente Martin Torrijos), CP279 |
in service (2019): CP265, 267-269, 271, 273, 274, 276-278, 280-292 |
Technical data
| Displacement standard, t | 42 |
|---|---|
| Displacement full, t | 55 |
| Length, m | 22.1 pp 25.0 oa |
| Breadth, m | 5.76 |
| Draught, m | 0.92 |
| No of shafts | 2 + 1 waterjet |
| Machinery | 3 Isotta-Fraschini V1312 T2 diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil 10 |
| Endurance, nm(kts) | 900(18) |
| Armament | none |
| Electronic equipment | SPN-753X radar |
| Complement | 8 |
Graphics

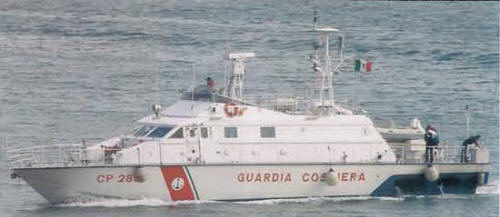

CP288 2007
Project history
25 were ordered in late 1999 for delivery within 30 months; option for five additional included in contract. Aluminum construction. Carry a 4.5m rigid inflatable inspection launch with a 45hp gasoline outboard motor.
Modernizations
None.
Naval service
No significant events.
