CP256 patrol boats (1985)
CP258
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP256-258 |
Italcraft, Gaeta: CP256-258 |
1985: CP256-258 |
none |
none |
2015: CP256-258 |
Technical data
| Displacement standard, t | 20 |
|---|---|
| Displacement full, t | 23 |
| Length, m | 16.0 |
| Breadth, m | 5.25 |
| Draught, m | 0.98 |
| No of shafts | 2 waterjets |
| Machinery | 2 CRM 12D5/2 diesels |
| Power, h. p. | 1700 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil 3 |
| Endurance, nm(kts) | 350(24) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

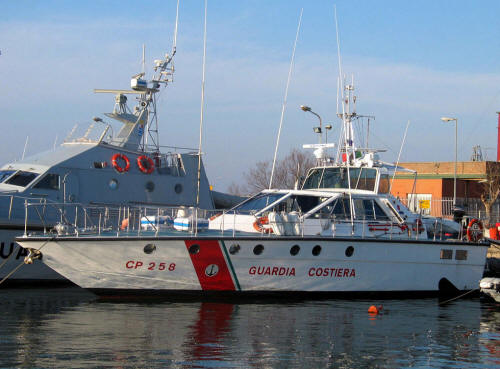

CP258
Project history
Patrol launches of Coast Guard. GRP hull.
Modernizations
None.
Naval service
No significant events.
