CP239 patrol boats (1973-1974)
CP241
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP239-243 |
CN Leopoldo Rodriguez, Messina: CP239-243 |
1973: CP239 1974: CP240-243 |
none |
Djibouti, 2006: CP242 (P15) |
1991: CP240 2002: CP241, 242 2004: CP239, 243 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 24 |
| Length, m | 16.8 |
| Breadth, m | 5.02 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 Isotta-Fraschini ID36 SS6V diesels |
| Power, h. p. | 1520 |
| Max speed, kts | 28.6 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Electronic equipment | radar |
| Complement |
Graphics

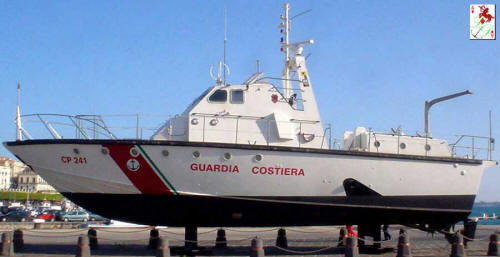

CP241
Project history
Patrol launches of Coast Guard.
Modernizations
None.
Naval service
No significant events.
