CP231 patrol boats (1968-1970)
CP238 2000
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP231 - 238 |
CN Leopoldo Rodriguez, Messina: CP231 - 238 |
1968: CP231-235 1969: CP236, 237 1970: CP238 |
none |
Albania, 2002: CP234 (RB225), CP235 (RB124), CP236 (RB226) |
1998: CP232 2001: CP231, 235, 236 2003: CP233 2004: CP237 2005: CP238 |
Technical data
| Displacement standard, t | 14 |
|---|---|
| Displacement full, t | 16 |
| Length, m | 13.4 |
| Breadth, m | 4.80 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 AIFO 8281 SRM diesels |
| Power, h. p. | 900 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(20) |
| Armament | none |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

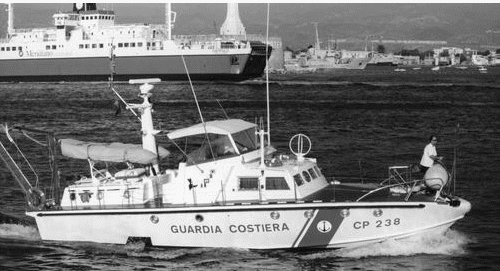

CP238 2000
Project history
Patrol launches of Coast Guard. Wooden-hulled.
Modernizations
None.
Naval service
No significant events.
