REGINA MARIA PIA broadside ironclads (1864 - 1866)

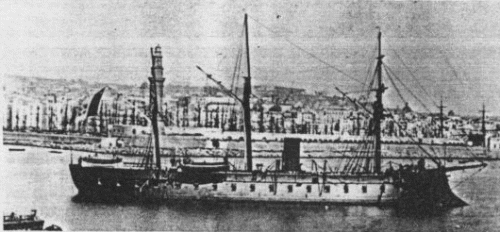

Castelfidardo 1866

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Regina Maria Pia     F C de la Méditerranée, La Seyne, France 22.7.1862 28.4.1863 17.4.1864 stricken 5.1904
San Martino     F C de la Méditerranée, La Seyne, France 22.7.1962 21.9.1863 9.11.1864 stricken 8.1903
Castelfidardo     Gouin et Guibert, Saint-Nazaire, France 27.7.1862 1.8.1863 5/1864 stricken 12.1910
Ancona     C A de l'Océan, Bordeaux, France 11.8.1862 17.10.1864 4/1866 stricken 8.1903


Technical data


Displacement normal, t

Regina Maria Pia, San Martino: 4201

Castelfidardo: 4192

Ancona: 4157

Displacement full, t

Regina Maria Pia, San Martino, Castelfidardo: 4527

Ancona: 4619

Length, m

Regina Maria Pia, San Martino: 75.5 pp 81.2 oa

Castelfidardo, Ancona: 76.0 pp 81.8 oa

Breadth, m

15.2

Draught, m

6.35

No of shafts

1

Machinery

Regina Maria Pia, San Martino: 1 HSE, 6 rectangular boilers

Castelfidardo, Ancona: 1 HSE, 8 rectangular boilers

Power, h. p.

Regina Maria Pia: 2924

San Martino: 2620

Castelfidardo: 2125

Ancona: 2548

Max speed, kts

Regina Maria Pia: 13.0

San Martino: 12.6

Castelfidardo: 12.1

Ancona: 13.7

Fuel, t

coal 485

Endurance, nm(kts)2600(10)
Armour, mm

Regina Maria Pia, San Martino: iron; belt: 120, battery: 110

Castelfidardo, Ancona: iron; belt: 110, battery: 110

Armament

Regina Maria Pia, San Martino: 4 x 1 - 203/13 Armstrong 7ton MLR, 22 x 1 - 164/17 Palliser 5.12ton MLR or 164/16 Palliser 3.54ton MLR

Castelfidardo, Ancona: 4 x 1 - 203/13 Armstrong 7ton MLR, 23 x 1 - 164/17 Palliser 5.12ton MLR or 164/16 Palliser 3.54ton MLR

Complement

484



Standard scale images


<i>Regina Maria Pia</i> 1864
Regina Maria Pia 1864
<i>Castelfidardo </i>1890s
Castelfidardo 1890s


Graphics


<i>Castelfidardo </i>1866
Castelfidardo 1866


Project history

Ordered by the Italian Government from French yards (who also drew up the designs), these ships varied slightly, one group consisting of Regina Maria Pia and San Martino, and the other of Castelfidardo and Ancona. All were iron-hulled with complete iron belts and sides. After 1866, the armament and armour system were modified so that the ships, provided with a central armoured casemate, could fire ahead and astern (two guns forward, one astern). The armour for the end guns was removed. They were rigged at first as three-masted schooners, but during their long life, the rig was altered, first to barque and finally, about 1888-90, to two military masts with fighting tops.

Ship protection

Their sides were entirely protected by 110-120mm thick iron plates, battery had 110mm protection.

Modernizations

1871, Castelfidardo, Ancona: were armed with 2 x 1 - 254/14 Armstrong 8.1ton MLR No2, 8 x 1 - 203/13 Armstrong 7ton MLR

1875, Regina Maria Pia, San Martino; 1880, Castelfidardo, Ancona: were armed with 2 x 1 - 229/14 Armstrong 12.6ton MLR, 9 x 1 - 203/13 Armstrong 7ton MLR

1884, Castelfidardo: was armed with 8 x 1 - 152/33 A1883, 6 x 1 - 120/24 Armstrong 1.38ton BLR, 4 x 1 - 57/40 H, 8 x 5 - 37/20 H

1884, Ancona: was armed with 8 x 1 - 152/33 A1883, 6 x 1 - 120/24 Armstrong 1.38ton BLR, 4 x 1 - 57/40 H, 2 x 5 - 37/20 H, 3 - 350 TT (1 bow, 2 beam)

1885, Regina Maria Pia, San Martino: were armed with 8 x 1 - 152/33 A1883, 5 x 1 - 120/24 Armstrong 1.38ton BLR, 4 x 1 - 57/40 H, 8 x 5 - 37/20 H, 3 - 350 TT (1 bow, 2 beam)

1900, Castelfidardo: was armed with 1 x 1 - 76/40 A, 1 x 1 - 75/21 Uchatius 29cwt BL No1, 4 x 1 - 57/43 N, 1 x 1 - 47/40 (c.o.), 2 x 5 - 37/20 H, 2 - 450 TT (beam)

Naval service

Castelfidardo in 1900 was converted to a torpedo TS.
