MARIO MARINO commando support craft (1984)





Alcide Pedretti 1999

Ships


Names Builders Commissioned Losses Transfers Discarding

MEN213 Mario Marino

MEN214 Alcide Pedretti

Intermarine-Crestitalia, Ameglia, La Spezia: MEN213, 214

1984: MEN213, 214

none

none

late 1980s, diving tenders: MEN213, MEN214



Technical data


Displacement standard, t70
Displacement full, t97
Length, m

22.9

Breadth, m

6.90

Draught, m

1.06 hull 1.50 max

No of shafts2
Machinery2 Isotta-Fraschini ID36 SS12V diesels
Power, h. p.3040
Max speed, kts

28

Fuel, tdiesel oil
Endurance, nm(kts)450(23)
Armamentdecompression chamber
Military loadswimmers
Complement8


Graphics

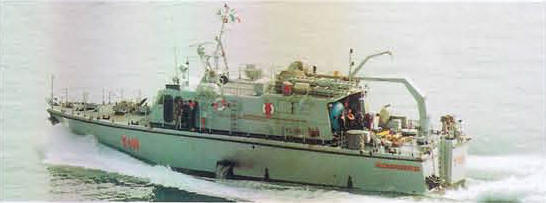

<i>Alcide Pedretti </i>1999
Alcide Pedretti 1999


Project history

Typed MAS (Motoscafi Appoggio Subacquei). Built for Raggruppamento Incursori assault swimmers (COMSUBIN), based at La Spezia. GRP construction.

Modernizations

None.

Naval service

Soon after commission both craft were re-classified as auxiliaries (diving tenders) Y498 and 499 respectively.
