FIGHTING SHIPS OF THE WORLD
PERSIA / IRAN
MINE WARFARE SHIPS AND CRAFT
KAHNAMUIE inshore minesweepers (1964)
Riazi 1975
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| كهنموي [Kahnamuie], 8.1967- أرشي [Harishi] | 301, 1976- 311 | Tacoma BB, USA | 9.1964 | sunk 1981 | |||
| ريزي [Riazi] | 302, 1976- 312 | Tacoma BB, USA | 26.10.1963 | 10.1964 | stricken 2010? |
Technical data
| Displacement standard, t | 203 |
|---|---|
| Displacement full, t | 239 |
| Length, m | 34.1 |
| Breadth, m | 7.14 |
| Draught, m | 2.40 |
| No of shafts | 2 |
| Machinery | 4 General Motors Detroit Diesel 6-71 diesels |
| Power, h. p. | 960 |
| Max speed, kts | 12.5 |
| Fuel, t | diesel oil 20 |
| Endurance, nm(kts) | 1000(9) |
| Armament | 1 x 1 - 12.7/90, mechanical, magnetic minesweeping gear |
| Electronic equipment | Decca 303 radar |
| Complement | 21 |
Standard scale images
Harishi 1980
Graphics

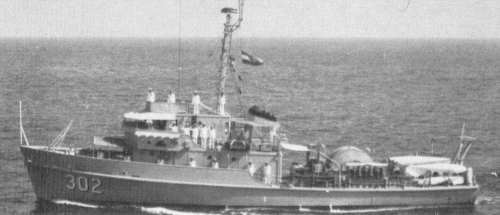

Riazi 1975
Project history
USN Cove class inshore minesweepers, built under MDAP
Modernizations
None.
Naval service
Harishi was lost during Iran-Iraq war.
