KORAMSHAHR patrol ships (1985-1993)

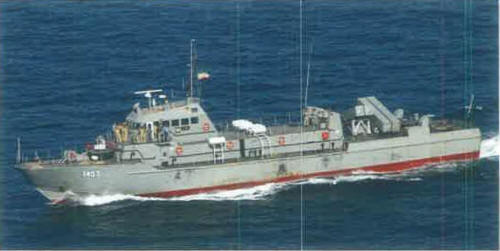

Kalat 2009

Ships


Name No Yard No Builder Laid down Launched Comp Fate
مچم [Macham]     Damen, Hardinxweld, Netherlands     1985 in service (2019)
کرامشهر [Koramshahr]     Damen, Hardinxweld, Netherlands     1985 in service (2019)
هندیجان [Hendijan] 1401   Damen, Hardinxweld, Netherlands     1987 in service (2019)
سیریک [Sirik] 1402   Damen, Hardinxweld, Netherlands     1989 in service (2019)
کنارک [Konarak] 1403   Damen, Hardinxweld, Netherlands     1988 in service (2019)
گواتر [Gaveter] 1404   Damen, Hardinxweld, Netherlands     1990 in service (2019)
مگام [Mogam] 1405   Bandar Abbas SY     1992 in service (2019)
بهرگان [Bahregan] 1406   Bandar Abbas SY     1992 in service (2019)
کلات [Kalat] 1407   Damen, Hardinxweld, Netherlands     1987 in service (2019)
گناوه [Genaveh] 1408   Damen, Hardinxweld, Netherlands     1988 in service (2019)
رستم [Rostam] 1409   Bandar Abbas SY     1993 in service (2019)
نایبند [Nayband] 1410   Bandar Abbas SY     1993 in service (2019)


Technical data


Displacement standard, t446
Displacement full, t650
Length, m

44.6 pp 47.0 oa

Breadth, m

8.55

Draught, m2.86
No of shafts2
Machinery

2 Mitsubishi S16MPTK diesels

Power, h. p.6200
Max speed, kts

21

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 20/90 GAM-B01

Military load90 troops, 40 t cargo on deck, 95 m³ cargo holds/tanks
Electronic equipment

Decca 2070 radar

Complement15


Standard scale images


<i>Bahregan </i>2010
Bahregan 2010


Graphics


<i>Kalat </i> 2009
Kalat 2009


Project history

Personnel transports of MIG-S-4700-SC class. Can be used for patrol and classified by Iranian press as 'frigates' or 'patrol ships'.

Modernizations

2000s, Sirik, Kalat, Genaveh: + 2 x 2 Noor SSM (4 C-802)

Naval service

No significant events.
