NAVYPEDIA


Artemiz 1978

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
آرتمیس [Artemiz] (ex-Sluys), 1985- دماوند [Damavand]	D5, 1976- 51		Cammell Laird, Birkenhead, UK	11.1943	28.2.1945	9/1946 // 26.1.1965	stricken ~1995-97

Technical data

Displacement standard, t	2315 - 2325
Displacement full, t	3290 - 3300
Length, m	108.2 pp 115.5 oa
Breadth, m	12.3
Draught, m	4.62 deep load
No of shafts	2
Machinery	2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers
Power, h. p.	50000
Max speed, kts	35.75
Fuel, t	oil 727, diesel oil 40
Endurance, nm(kts)	4400(20)
Armament	1 x 4 Seacat GWS 22 SAM (16 Seacat), 2 x 2 - 114/45 Mk 4, 4 x 1 - 40/60 Mk 7, 1 x 3 - 305 Squid Mk 4 ASWRL
Electronic equipment	AWS-1, Decca 629, Sea Hunter radars,  PMS-26 sonar, RDL-1 ECM suite
Complement	270

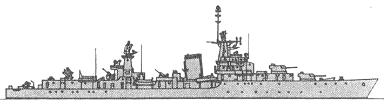

Standard scale images

Graphics

Project history

Former 'Battle' class British destroyer was transferred to Iran after three-year modernization by Vosper Thornycroft.

Modernizations

1976: - 2 x 1 - 40/60; + 2 x 4 Standard SSM (8 RGM-66D)

1985: - 1 x 4 Seacat SAM; + 1 x 2 - 23/87 ZU-23-2

Naval service

No significant events.
