PEYKAAP II / III fast attack craft (missile) (2002-)





Peykaap II 2009

Ships


Names Builders Commissioned Losses Transfers Discarding

Peykaap II: 30 units

Peykaap III: 20 units

Iran: 50 units

Peykaap II: 2002-2016: 30 units

Peykaap III: 2012-2020: 20 units

none

none

in service  IRGC (2019): 30 Peykaap II, ~18 Peykaap III

Building (2019): some Peykaap III



Technical data


Displacement standard, t

14

Displacement full, t
Length, m

17.3

Breadth, m

3.75

Draught, m

0.70

No of shafts

2

Machinery

2 diesels

Power, h. p.

2400

Max speed, kts

52

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

Peykaap II: 2 x 1 C-701 (mostly) or FL-10 or C-704 Nasr SSM (2 C-701 or 2 FL-10 or 2 C-704), 2 - 324 TT

Peykaap III: 2 x 1 C-701 (mostly) or FL-10 or C-704 Nasr SSM (2 C-701 or 2 FL-10 or 2 C-704), 2 x 1 - 12.7/90

Electronic equipment

radar

Complement


Standard scale images


<i>Peykaap III </i>2010
Peykaap III 2010


Graphics

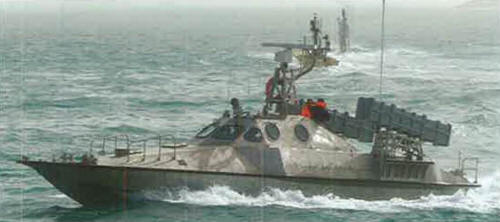

Peykaap II 2009
Peykaap II 2009

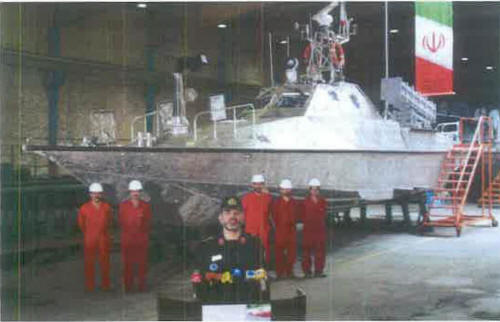

Peykaap III 2010
Peykaap III 2010


Project history

Slightly larger version of North Korean Peykaap (IPS16) class, armed with SSMs in addition to torpedoes, 3rd version has MGs instead of torpedoes.

Modernizations

None.

Naval service

No significant events.
