TELUK KENDARI tank landing ships (2018-)

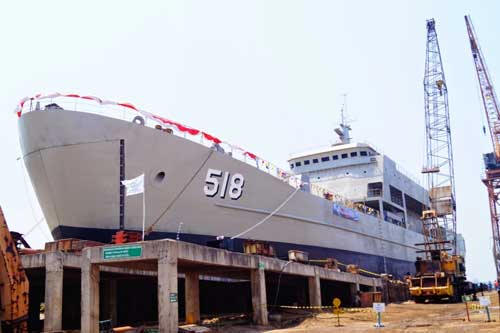

Teluk Kendari 2015
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| Teluk Kendari | 518 | PT Dok & Perkapalan Kodja Bahari, Persero | 2014 | 2015 | 2018 | in service (2019) | |
| Teluk Kupang | 519 | PT Dok & Perkapalan Kodja Bahari, Persero | 2015 | 2016 | 2018 | in service (2019) | |
| Teluk Lada | 521 | PT Daya Radar Utama, Panjang | 2016 | 28.6.2018 | 2018 | in service (2019) | |
| AT-8 | PT Daya Radar Utama, Panjang | 2019 | 2020 | 2022 | ordered (2019) | ||
| AT-9 | PT Daya Radar Utama, Panjang | 2020 | 2021 | 2023 | planned (2019) |
Technical data
| Displacement standard, t | 2350 |
|---|---|
| Displacement full, t | 4000 |
| Length, m | 117.0 |
| Breadth, m | 16.4 |
| Draught, m | 7.80 |
| No of shafts | 2 |
| Machinery | 2 MAN diesels |
| Power, h. p. | 7940 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6250(13) |
| Armament | 2 x 1 - 40/70 Bofors 350AFD, helicopter deck |
| Military load | 10 tanks, 361 troops |
| Electronic equipment | 2x radars |
| Complement | 108 |
Graphics
Teluk Kendari 2015
Project history
New large class of LSTs of indigenious Indonesian design. Helicopter deck can accommodate two helicopters.
Modernizations
None.
Naval service
No significant events.
