TELUK GILIMANUK medium landing ships (1976-1979/1993-1995)
Teluk Sangkuring 2005 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| Teluk Gilimanuk (ex-Hoyerswerda) | 531 | 331 | Peenewerft, Wolgast, East Germany | 25.11.1974 | 1.7.1975 | 12.11.1976 // 12.7.1994 | in service (2019) |
| Teluk Celukan Bawang (ex-Hagenow) | 532 | 332 | Peenewerft, Wolgast, East Germany | 7.3.1975 | 19.12.1975 | 1.12.1976 // 25.2.1994 | in service (2019) |
| Teluk Cendrawasih (ex-Frankfurt/Oder) | 533 | 333 | Peenewerft, Wolgast, East Germany | 10.6.1975 | 2.1.1976 | 2.2.1977 // 9.12.1994 | in service (2019) |
| Teluk Berau (ex-Eberswalde/Finow) | 534 | 334 | Peenewerft, Wolgast, East Germany | 10.9.1975 | 15.7.1976 | 28.5.1977 // 10.3.1995 | stricken 9.2012 |
| Teluk Peleng (ex-Lübben) | 535 | 335 | Peenewerft, Wolgast, East Germany | 11.12.1975 | 2.10.1976 | 15.3.1978 // 23.9.1993 | foundered 11.2013 |
| Teluk Sibolga (ex-Schwerin) | 536 | 336 | Peenewerft, Wolgast, East Germany | 17.3.1976 | 18.1.1977 | 19.10.1977 // 15.12.1993 | in service (2019) |
| Teluk Manado (ex-Neubrandenburg) | 537 | 337 | Peenewerft, Wolgast, East Germany | 21.8.1976 | 6.4.1977 | 28.12.1977 // 2.6.1995 | in service (2019) |
| Teluk Hading (ex-Cottbus) | 538 | 338 | Peenewerft, Wolgast, East Germany | 22.11.1976 | 10.6.1977 | 26.5.1978 // 12.7.1994 | in service (2019) |
| Teluk Parigi (ex-Anklam) | 539 | 339 | Peenewerft, Wolgast, East Germany | 21.2.1977 | 22.9.1977 | 14.7.1978 // 21.7.1995 | in service (2019) |
| Teluk Lampung (ex-Schwedt) | 540 | 340 | Peenewerft, Wolgast, East Germany | 5.5.1977 | 27.12.1977 | 7.9.1979 // 26.4.1994 | in service (2019) |
| Teluk Jakarta (ex-Eisenhüttenstadt) | 541 | 341 | Peenewerft, Wolgast, East Germany | 18.8.1977 | 8.3.1978 | 4.1.1979 // 19.9.1994 | in service (2019) |
| Teluk Sangkulirang (ex-Grimmen) | 542 | 342 | Peenewerft, Wolgast, East Germany | 2.11.1977 | 30.5.1978 | 15.6.1979 // 9.12.1994 | in service (2019) |
Technical data
| Displacement standard, t | 1710 |
|---|---|
| Displacement full, t | 1930 |
| Length, m | 90.7 |
| Breadth, m | 11.1 |
| Draught, m | 2.80 mean 3.47 max |
| No of shafts | 2 |
| Machinery | 2 61B diesels |
| Power, h. p. | 12000 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2450(14) |
| Armament | 1 x 1 - 40/70 Bofors 350AFD, 1 x 2 - 37/63 V-11M, (2 - 3) x 2 - 25/80 2M-3M |
| Military load | 12 tanks or 600 t cargo, 100 troops |
| Electronic equipment | TSR-333, Rubka radars, 2x PK-16 decoy RL |
| Complement | 55 |
Standard scale images

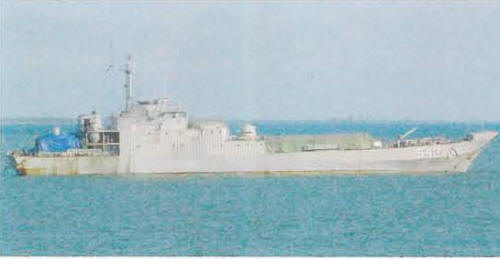

Teluk Gilimanuk 2000
Graphics
Teluk Sangkuring 2005 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Twelve former GDR fast medium landing ships of the 'Frosch 1' class built by VEB Peenewerft, Wolgast, to an indigenous East German design 1976-79. Officially transferred to Indonesia 25 August 1993. Refitted in German yards prior to transfer, where all armament was removed, to be replaced later after delivery. A very valuable addition to the Indonesian Navy's landing forces in view of the block obsolescence of the ex-US LST 511 type landing ships.
Modernizations
2005, Teluk Manado, Teluk Hading: diesels were replaced by 2 SEMT-Pielstick 6PA6L
Naval service
Teluk Lampung was wrecked 3.6.1994 during transfer but was refitted. Teluk Peleng foundered in November 2013.
Many thanks to Wolfgang Stöhr for additional information on this page.
