TANJUNG DALPELE amphibious transport dock (2003)

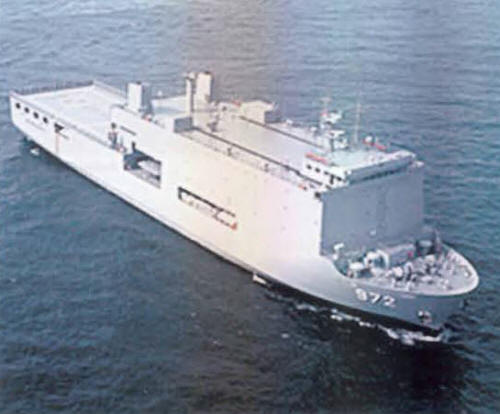

Tanjung Dalpele 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
|---|---|---|---|---|---|---|---|
| Tanjung Dalpele, 8.2007- Dr. Soeharso | 972, 8.2007- 990 | Dae Sun, Pusan, South Korea | 2002 | 19.5.2003 | 21.9.2003 | in service (2019) |
Technical data
| Displacement standard, t | 7300 |
|---|---|
| Displacement full, t | 11300 |
| Length, m | 109.2 pp 122.0 oa |
| Breadth, m | 22.0 |
| Draught, m | 4.90 mean hull |
| No of shafts | 2 |
| Machinery | 2 MAN-Burmeister & Wain 8L28/32A diesels |
| Power, h. p. | 5250 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 8600(12) |
| Armament | 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20, 2 helicopters (AS332L Super Puma) |
| Military load | 2 LCM, 2 LCVP, 14 tanks, 218 troops or 2480 t cargo |
| Electronic equipment | 2x nav. radars |
| Complement | 126 |
Standard scale images
Dr. Soeharso 2010
Graphics

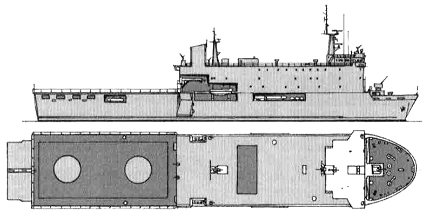

Tanjung Dalpele 2004
Project history
Tanjung Dalpele was ordered as hospital ship but serves as command and amphibious ship.
Modernizations
None.
Naval service
No significant events.
